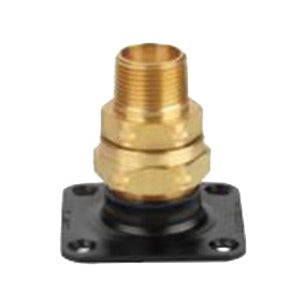

Gastite XR3TRM-11-12 3/4 Flanged x MPT 25 PSI Brass Flare Termination Fitting

Product Description

The Gastite XR3TRM-11-12 is a termination fitting designed for use in flexible gas piping systems. This fitting measures three-quarters of an inch and features a flanged connection with male threads. Made from CA360 brass and steel, it offers a pressure rating of twenty-five PSI.

• End connection: Flanged x Male Threaded
• Temperature range: -40 to 160 degrees Fahrenheit
• Designed for use with flexible gas tubing and distribution manifolds

Product Highlights

This termination fitting ensures a metal-to-metal seal without O-rings or gaskets, providing reliability in gas applications. It is designed for easy installation with minimal torque required.

Product Information

Standard Information

• Brand: Gastite
• Product Type: Termination Fitting

Technical Specifications

• Connection Size: 3/4 inch
• Material: CA360 Brass (Body), Steel (Flange)
• Pressure Rating: 25 PSI
• Temperature Rating: -40 to 160 degrees F
• Applicable Standards: ANSI, CSA, ICC-ES, IAPMO
• Torque Rating: 45 foot-pound
• Fitting Size: 1-3/8 inch
• Includes: 1 inch x 2-5/8 inch outer diameter flange, adapter, 1-9/16 inch nut, bushing
