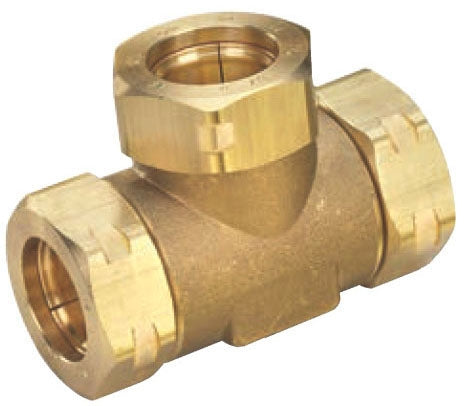

Gastite XR3T-11-8-8-6 Reducing Tee, Brass, for CSST Yellow and Black, 25 PSI

Product Description

This Gastite reducing tee, model XR3T-11-8-8-6, is crafted from CA360 brass and is ideal for linking corrugated stainless steel tubing in both commercial and residential settings. It supports a pressure rating of 25 PSI and a wide temperature range from -40 to 160 degrees Fahrenheit.

• Easy installation with no special tools required due to its tool-less flare design.
• Provides a reliable metal-to-metal seal without the need for split rings, O-rings, or gaskets.
• Reusable and features an exclusive, patented jacket-lock to prevent stainless steel exposure beyond the nut.

Product Highlights

This tee is part of the Gastite system and is compatible with both FlashShield black and Gastite yellow tubing, enhancing its utility in various installations.

Product Information

Standard Information

• Type: Reducing
• Material: CA360 Brass
• Applicable Standards: ANSI, CSA, ICC-ES, IAPMO
• Pressure Rating: 25 PSI
• Temperature Rating: -40 to 160 degrees Fahrenheit
• Nominal Size: 3/4 inch x 1/2 inch x 1/2 inch

Technical Specifications

• Assembled Length: 2.85 inches
• Includes: 3 split bushing, 3 nut
• Used On: FlashShield black and Gastite yellow tubing
