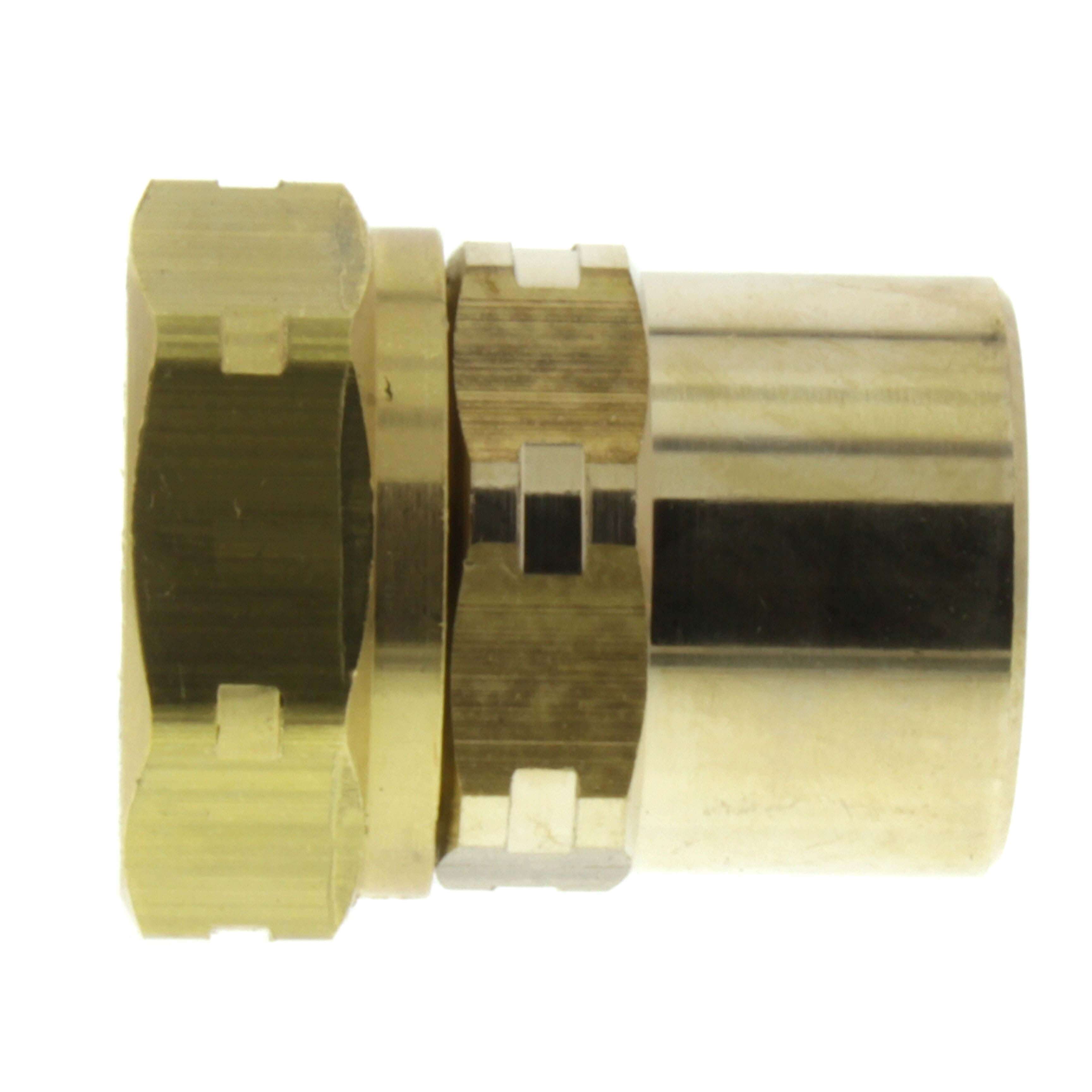

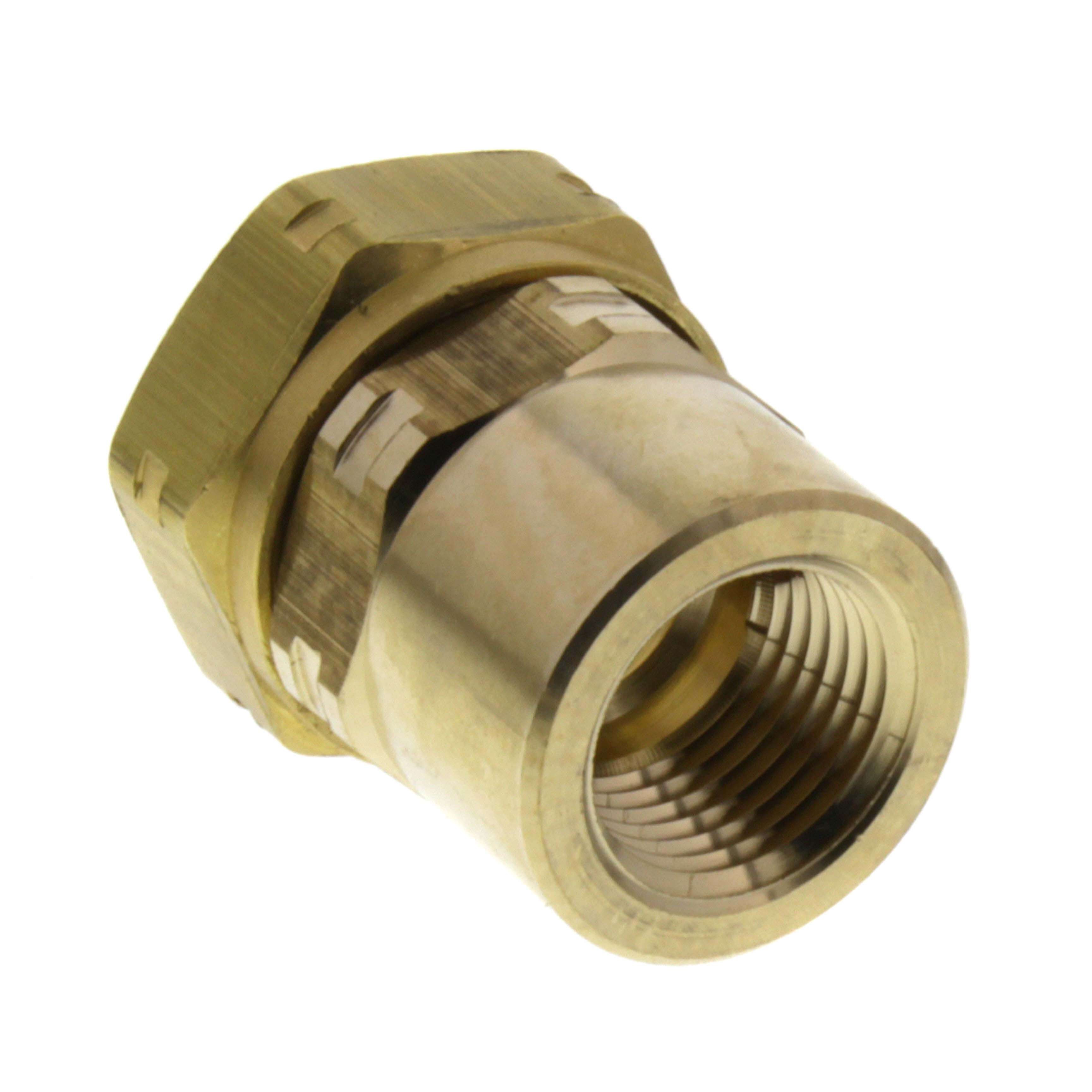

Gastite XR3FTGFM-8 1/2 Straight Fitting x 1/2 Female NPT

Product Description

The Gastite XR3FTGFM-8 is a straight fitting designed for connecting flexible gas tubing to gas supplies and appliances. This fitting adheres to standards set by ANSI LC 1 and is compliant with CSA, ICC, and IAPMO listings.

• Female NPT connection
• Tool-less flare fitting design
• Fully reusable brass components

Product Highlights

This fitting allows for robust and reliable connections, ensuring electrical continuity throughout the system. Its innovative design simplifies installation with minimal torque needed and eliminates the need for O-rings or gaskets.

Product Information

Standard Information

• Fitting Type: Straight Fitting
• Connection Type: Female NPT

Technical Specifications

• Max Approved Operating Pressure: 25 psi
• Operating Temperature Range: -40°F to 160°F
• Fitting Material: CA360 brass
• Jacket-Lock Feature: Yes
• Metal Locking Feature: Yes
• Listings: CSA, ICC-ES, IAPMO
• Reusable: Yes
