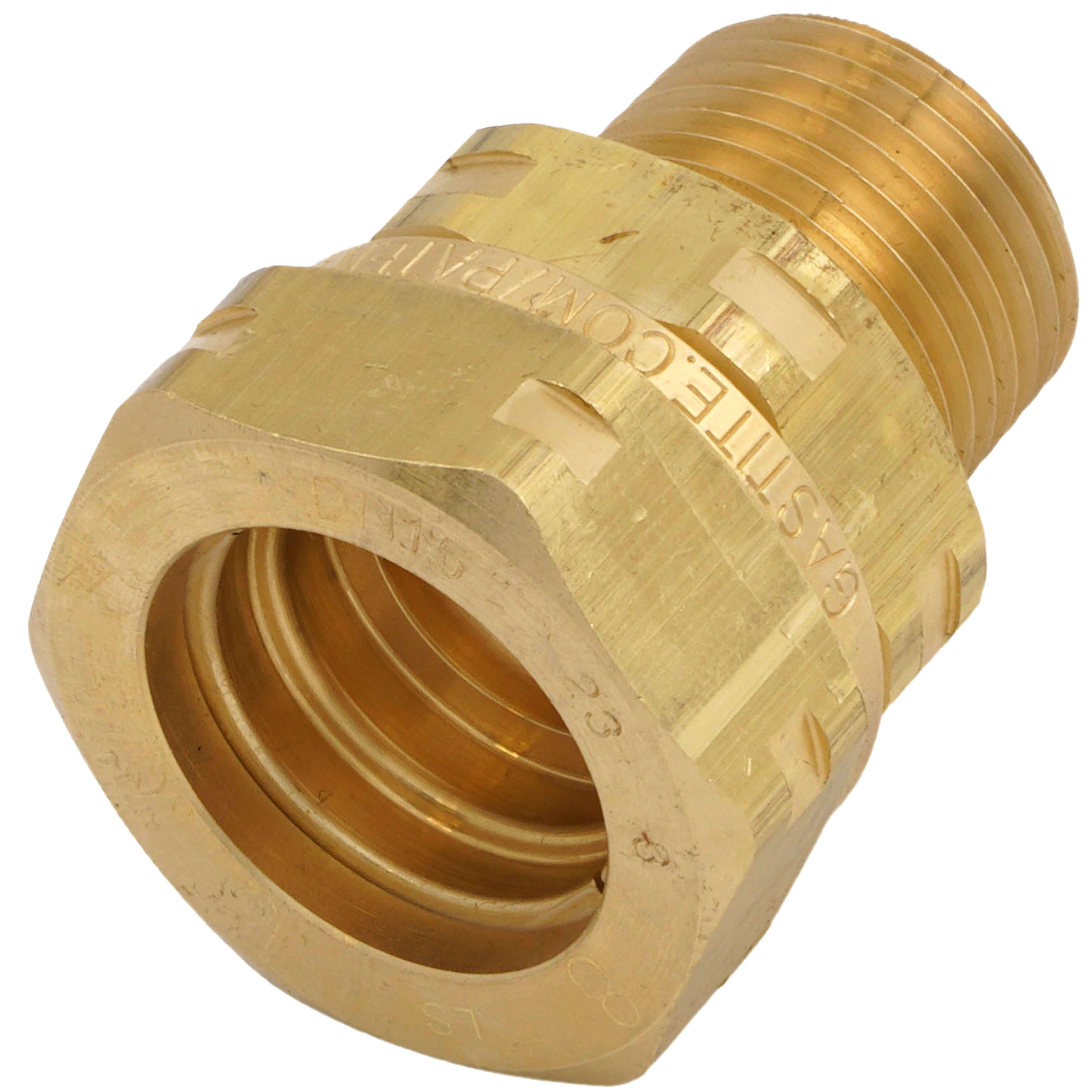

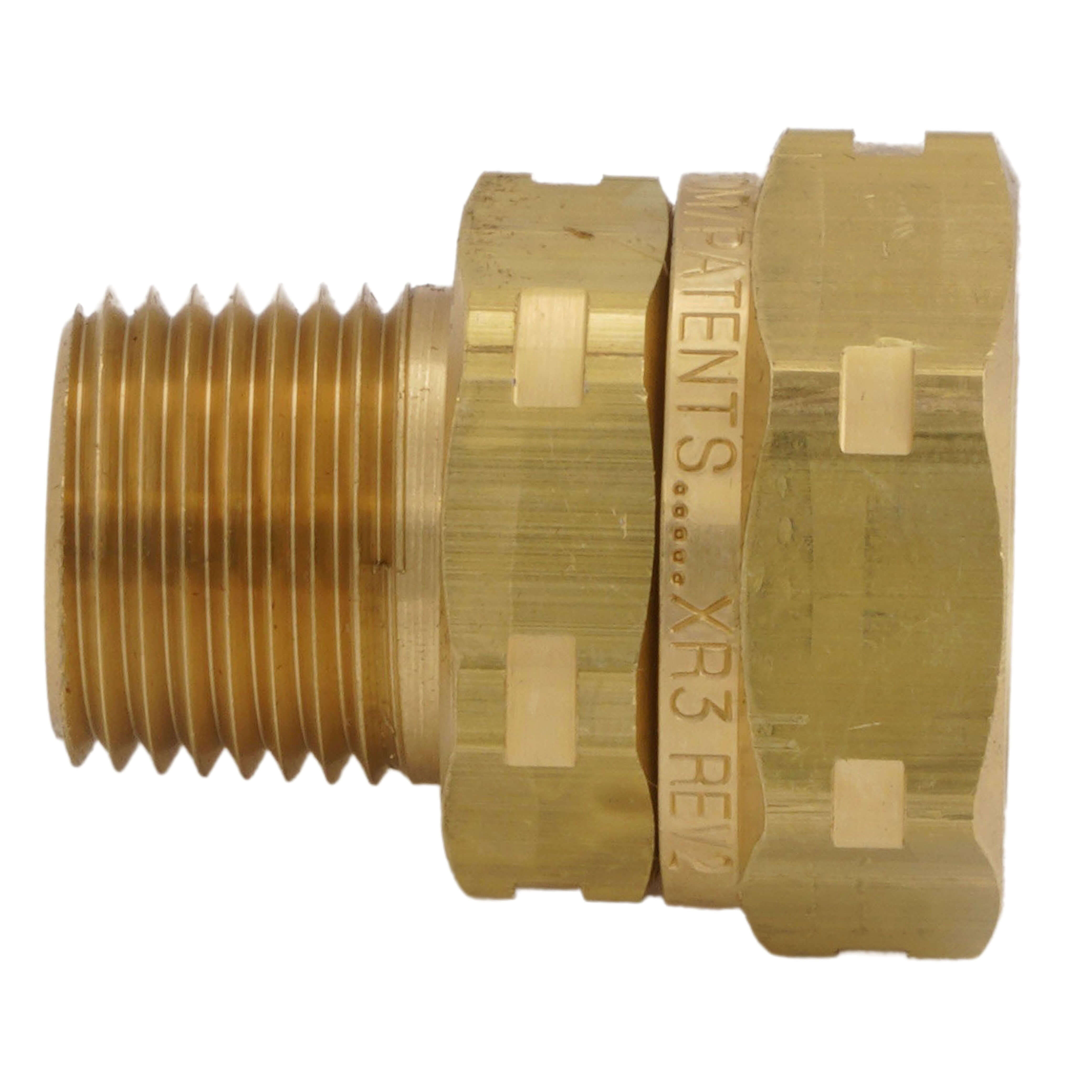

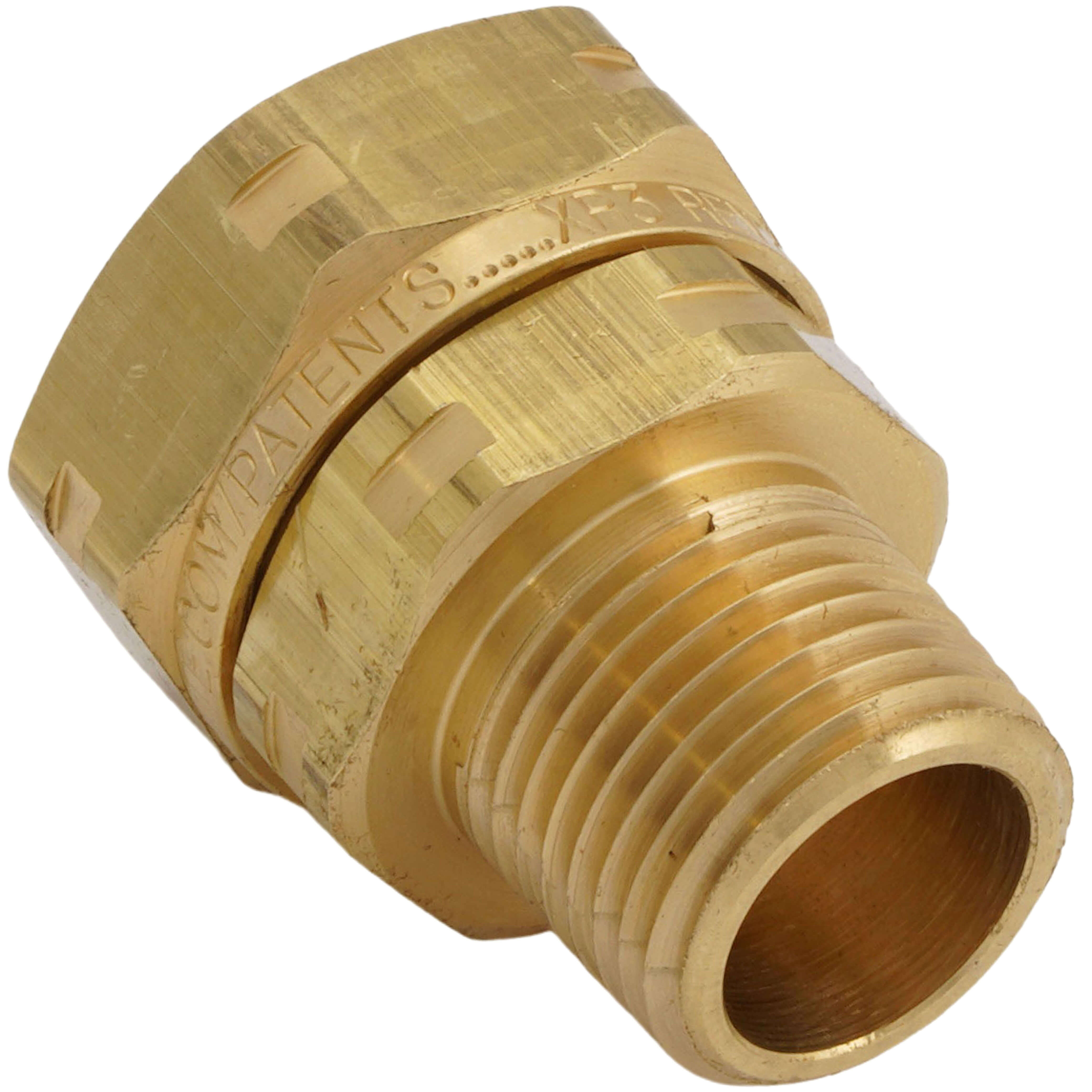

Gastite XR3FTG-8 1/2 Straight Fitting x 1/2 Male NPT

Product Description

The Gastite XR3FTG-8 is a 1/2 inch straight fitting designed for connecting flexible gas tubing to gas supply lines, distribution manifolds, or appliances. This fitting is part of the FlashShield system which complies with ANSI LC 1 and is listed with CSA, ICC, and IAPMO. The system features a metallically shielded corrugated stainless steel tubing that ensures safety and reliability.

• Approved for concealed use
• Tool-less flare fitting design
• Reusable brass components for a metal-to-metal seal

Product Highlights

The XR3 fitting's patented design contours the metal shield for electrical continuity. Installation is easy with minimal torque required, and the reusable components allow for efficient setups on gas lines.

Product Information

Standard Information

• Brand: Gastite
• MPN: XR3FTG-8

Technical Specifications

• Max Approved Operating Pressure: 25 psi
• Operating Temperature Range: -40°F to 160°F
• Fitting Material: CA360 brass
• Size: 1/2 inch
• Connection Type: MNPT
• Shipping Dimensions: 1.75 inches Depth, 1.25 inches Width, 1.25 inches Height
• Weight: 0.25 lbs
