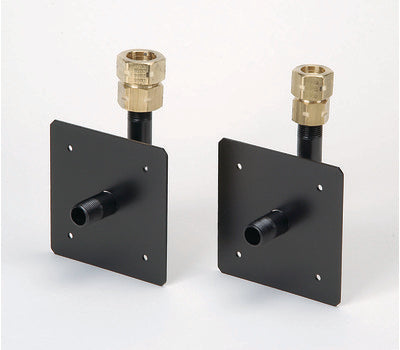

Gastite XR3-APSTUB-11-11-10 3/4 in Threaded Steel Stub-Out with 3/4 in Female Fitting

Product Description

The Gastite XR3-APSTUB-11-11-10 3/4 in. threaded steel stub-out with 3/4 in. female fitting is essential for HVAC and gas fitting applications. It offers a reliable connection by reducing the number of joints and provides a fixed termination point for appliance installations.

• Reduces the number of joints in the system
• Provides a fixed-point termination
• Creates a polished look to the overall installation

Product Highlights

This steel stub-out is designed for easy and safe installations, ensuring reliability in HVAC systems. It is used where appliance installations are pending and provides a professional finish.

Product Information

Standard Information

• Brand: Gastite
• Model Number: XR3-APSTUB-11-11-10

Technical Specifications

• UPC: 840889021297
• Weight: 1.98 lb.
• Material: Steel
• Bend Angle: 90 degrees
• Application: On a Wall or Floor Surface for Meter and Appliance Attachment
• Product Type: Straight
• Selling Size: 1-1/2 x 3-1/4 x 6 in.
• Connection Type: Threaded
• Color/Finish: Black
• Schedule/Class: Schedule 40
• Specifications Met: ASTM A53, CSA Certified, ICC-ES, IAPMO Listed
• Maximum Pressure Rating: 25 PSI
• Maximum Temperature Rating: +160 degrees Fahrenheit
• Minimum Temperature Rating: -40 degrees Fahrenheit
