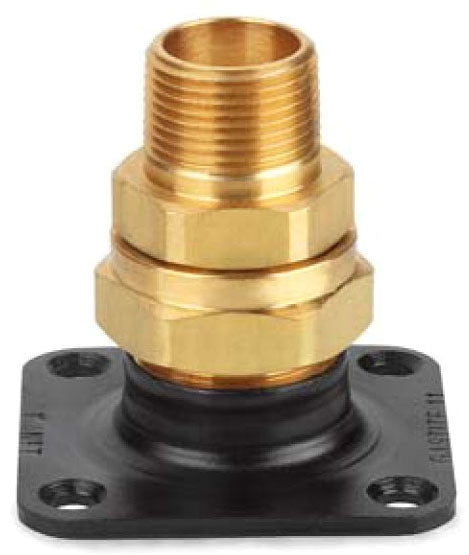

Gastite XR2TRM-16-6 1 Flanged x MPT 5 PSI Brass Flare Termination Fitting with Square Flange

Product Description

The Gastite XR2TRM-16-6 is a termination fitting made for connecting gas lines. This component is designed for use with flanged and male threaded connections. It is made with CA360 brass and features a square flange for secure mounting.

• Termination fitting for gas lines
• Constructed from durable CA360 brass
• Pressure rated for five PSI

Product Highlights

This fitting is ideal for wall or floor surface applications. Its design allows for easy assembly without the need for tools. It meets standards set by CSA, ICC, and IAPMO.

Product Information

Standard Information

• Manufacturer: Gastite
• Material: CA360 Brass (Body), Steel (Flange)

Technical Specifications

• Item: Termination Fitting
• Designated Size: 1 Inch
• Thickness: 0.01 Inch
• End Connection: Flanged x Male Threaded
• Pressure Rating: 5 PSI
• Temperature Rating: -40 to 160 Deg F
• Assembled Length: 2.8 Inch
• Flange Outer Diameter: 2-5/8 Inch
