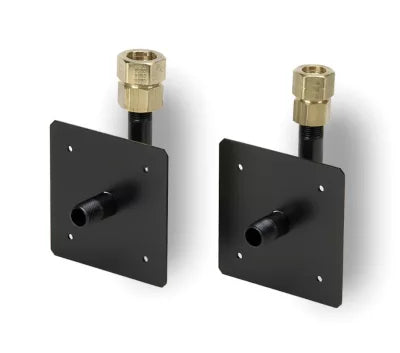

Gastite XR-APSTUB-8 1/2 x 1-1/2 Stub x 1/2 NPT

Product Description

Gastite model XR-APSTUB-8 is designed to provide a precise, fixed point stub-out on a wall or floor surface for meter and appliance attachment. Manufactured from robust Schedule 40 steel pipe, it ensures compliance with ASTM A-53 standards. The exterior is finished with a resilient black oxide coating post threading, forming, and welding, offering enhanced durability and resistance against corrosion.

• Minimizes system joints by providing predefined stub-outs, reducing the need for field-fabricated components.
• Ensures a fixed-point termination, useful for installations pending appliance setup.
• Elevates the overall aesthetic of installation areas.

Product Information

Standard Information

• Brand: Gastite
• MPN: XR-APSTUB-8
• UL Recognized: Yes
• Proposition 65 Warning: Yes

Technical Specifications

• Material: Schedule 40 Steel Pipe
• Connection Size: 1/2 NPT
• Pressure Rating: 25 PSI
• Weight: 1.49 lbs
• Dimensions: Length 4 inches, Width 5 inches, Height 5.25 inches
