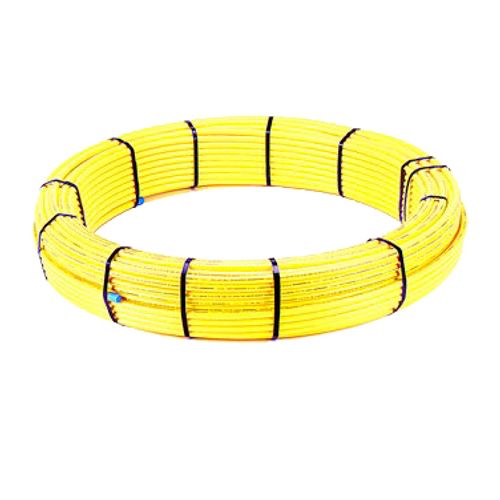

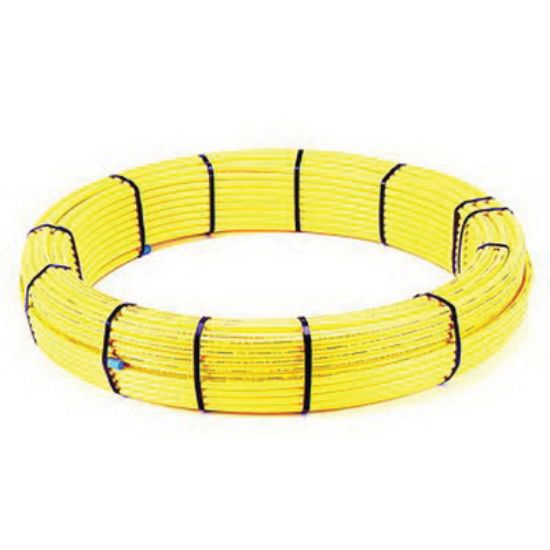

Gastite PE-32-250 Pe-32-250 2 inches Ips Pe Tubing Coil

Product Description

The GASTITE PE-32-250 tubing features a 2" IPS connection and comes in a 250-foot coil. Constructed from polyethylene, it meets ASTM D2513 material specifications. Designed for underground gas piping solutions, it adheres to NFPA 54/58, ASME DB31.8, CAN/CSA B137.4, CSA, IAPMO/UPC, and ISO 4437 standards.

• Cost Effective Joining Method
• Simple Assembly
• No Additional Assembly Equipment Required for Installation Just Chamfer and Push

Product Highlights

Designed for underground gas piping, this tubing offers flexibility and simple assembly, eliminating corrosion threats associated with metallic piping.

Product Information

Standard Information

• Brand: GASTITE
• Manufacturer Part Number: PE-32-250

Technical Specifications

• Applicable Standard: NFPA 54/58, ASME DB31.8, CAN/CSA B137.4, CSA, IAPMO/UPC, ISO 4437
• Application: Underground Gas Piping Solution
• CATALOG NUMBER: PE-32-250
• CUSTOMER UPC: 84088900126
• Category: Plumbing & Bath / Kitchen Fixtures
• End Connection: IPS
• Features/Benefits: Cost Effective Joining Method; Simple Assembly; No Additional Assembly Equipment Required for Installation Just Chamfer and Push; Uni-Body Design Eliminating All External Parts; Designed, Tested and Certified for Direct Burial; Eliminates Corrosive Threats Associated with Metallic Piping; Lowest Installed Cost Compared to Other Underground Gas Piping Materials; Continuous Lengths of Flexible Piping
• Length: 3000 in
• Manufacturer Name: Gastite
• Manufacturer Part Number: PE-32-250
• Material: Polyethylene
• Material Specification: ASTM D2513
• Outside Diameter: 2.375 Inch
• UNSPSC Code: 40183000
• Wall Thickness: 0.216 Inch
• Nominal Size: 2 Inch
• Schedule: SDR 11
• Shape: Coil
• Length (Feet): 250'
• Size: 2"
• Working Pressure: 125 psi
• Series: PE
• Industry Standards: ASME D-B31.8-1995
• Material Type: Polyethylene
• Product Type: HVAC Tubing
