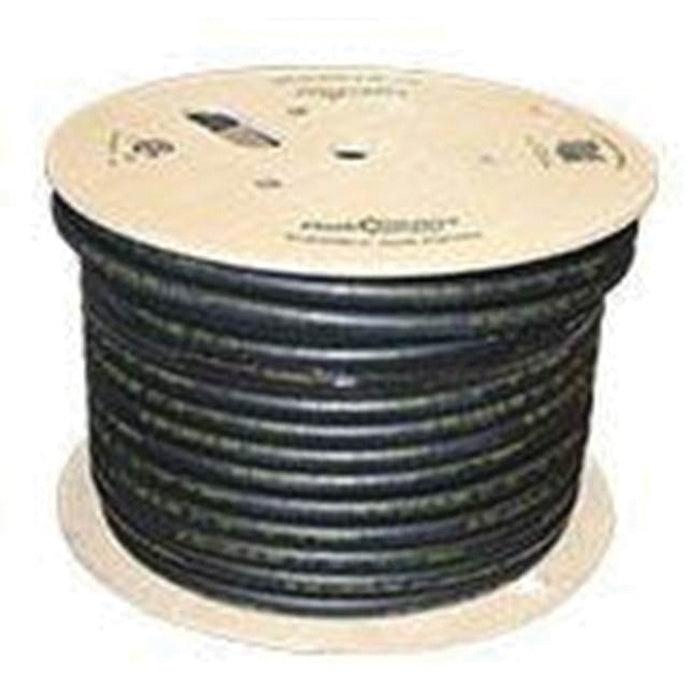

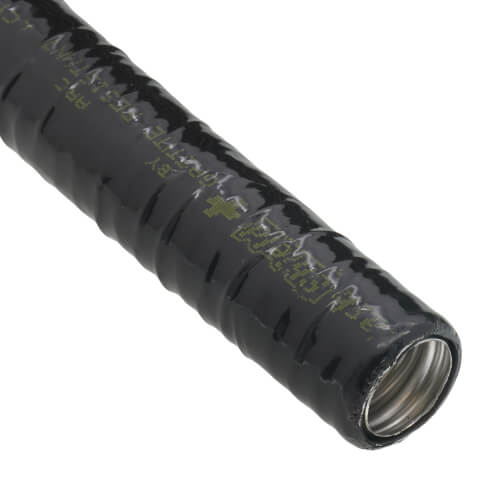

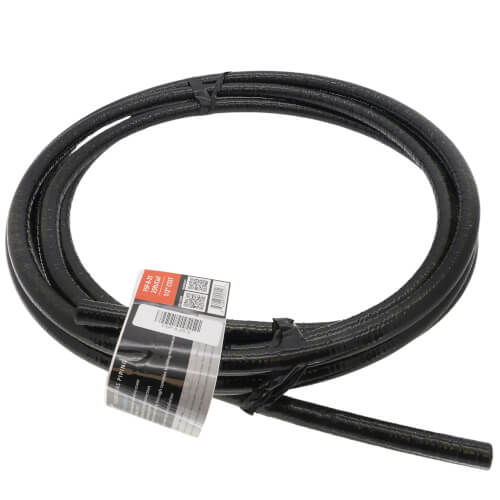

Gastite FSP-8-25 Corrugated Tubing

Product Description

The Gastite FlashShield+ FSP-8-25 is a corrugated stainless steel tubing, known as CSST, suitable for supplying natural gas or LP gas. This product includes a unique design with a metallic shield layer secured between an electrically insulative polymer cover and a semi-conductive polymer inner layer. It complies with ANSI LC1 standards, making it effective for fuel gas piping. This tubing has passed arc-resistant tests of ANSI LC1/CSA 6.26 and ICC-ES PMG LC1027. It is pre-marked by the foot, enhancing installation efficiency.

• Manufactured from ASTM A240 Type 304/321 stainless steel
• Features a UV resistant polymer jacket
• Operates effectively at temperatures from -40 to 160 degrees Fahrenheit

Product Highlights

This corrugated tubing is ideal for both residential and commercial applications, providing a reliable solution for gas supply lines.

Product Information

Standard Information

• Brand: Gastite
• MPN: FSP-8-25

Technical Specifications

• Material: ASTM A240 Type 304/321 Stainless Steel
• Jacket Material: UV Resistant Semi Conductive Polymer
• Nominal Pipe Size: 1/2 inches
• Inside Diameter: 1/2 inches
• Outside Diameter: 0.78 inches
• Length: 25 feet
• Wall Thickness: 0.01 inches
• Pressure Rating: 25 psi
• Temperature Rating: -40 to 160 degrees Fahrenheit
• Shape: Coil
