Product Description

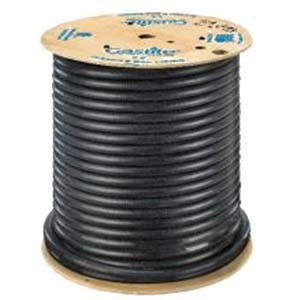

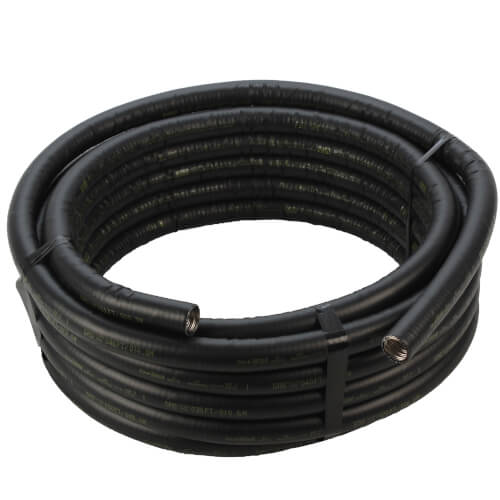

The Gastite FSP-16-50 FlashShield Corrugated Stainless Steel Gas Tubing is a durable solution for gas piping. This 1 inch x 50 feet tubing integrates a multi-layered protective jacket system. Suitable for both natural gas and liquefied petroleum gas, it meets various industry standards and certifications.
- Electrically insulating polymer cover
- Metallic shielding for added safety
- Pre-marked for convenient installation
Product Highlights
Gastite's FlashShield Tubing features a robust design that offers high lightning resistivity and multiple layers of protection. Lightweight and flexible, it ensures quicker and easier installations compared to traditional methods. Certified to ANSI, CSA, IAPMO, and ICC specifications, this tubing is corrosion resistant and has an optimal wall thickness.
Product Information
Standard Information
-
Brand: Gastite
-
MPN: FSP-16-50
Technical Specifications
-
Material: Stainless Steel
-
Nominal Size: 1 inch
-
Length: 50 feet
-
Wall Thickness: 0.01 inches
-
Outside Diameter: 1.37 inches with Jacket, 1.26 inches without Jacket
-
Temperature Rating: -40 to 160 degrees F
-
Packaging Type: Box
-
Pressure Rating: 25 PSI
-
Standards/Certifications: ANSI LC1/CSA 6.26, CSA file no. 1009875, IAPMO file no. C-3250 and 0239, ICC-ES PMG 1066 and 1155
-
Applications: For supplying natural gas or liquefied petroleum gas to appliances
