Gastite FS-11-25 FlashShield+ Corrugated Stainless Steel Tubing

Product Description

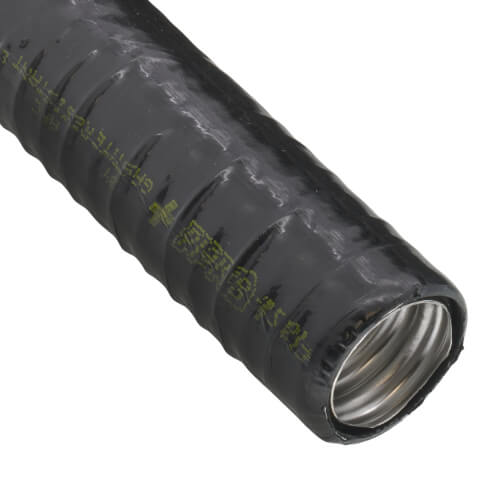

The Gastite FS-11-25 FlashShield+ is corrugated stainless steel tubing designed for transporting natural gas or LP gas to appliances. It includes a metallic shield layer between two layers of semi-conductive UV-resistant polymer jacketing, ensuring durability and safety in varied conditions.

• Constructed with ASTM A240 Type 304/321 stainless steel.
• Features a UV resistant and electrically insulative polymer jacket.
• Pre-marked by the foot for easy installation.

Product Highlights

Reliable for natural and LP gas applications, designed for maximum safety and efficiency.

Product Information

Standard Information

• Brand: Gastite
• MPN: FS-11-25

Technical Specifications

• Material: ASTM A240 Type 304/321 Stainless Steel
• Jacket Material: UV Resistant Semi Conductive Polymer
• Nominal Size: 3/4 in
• Outside Diameter: 1.023 in
• Length: 25 ft
• Wall Thickness: 0.01 in
• Temperature Rating: -40 to 160 deg F
• Pressure Rating: 150 psi
• Application: Natural/LP Gas
• End Connection: CSST X CSST
• Shape: Coil
• Applicable Standards: CSA, ICC ES-PMG, IAPMO
