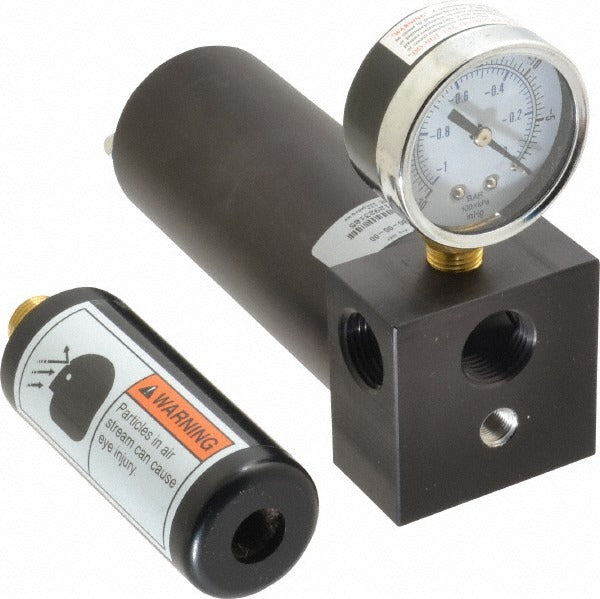

Gast VG-260-00-00 Venturi Vacuum Generator 17 Cfm

Product Description

The GAST VG-260-00-00 is a single-stage venturi vacuum generator designed for industrial and trade applications requiring reliable vacuum generation without moving parts. Operating on compressed air, this unit delivers 17 CFM open flow and achieves a maximum vacuum pressure of 27 inches Hg. Air consumption runs at 7 CFM, and the generator accepts supply pressure up to 68 psi. The 1/2 FPT vacuum port makes inline plumbing straightforward. Its venturi design eliminates the need for motor-driven components, reducing maintenance requirements in demanding environments.

This venturi vacuum generator is suited for pneumatic systems in manufacturing, automation, and process industries where a compact, self-contained vacuum source is needed. Typical applications include vacuum clamping, material handling, and pick-and-place operations. Because it requires only a compressed air supply to function, it integrates easily into existing compressed air systems. Qualified pneumatic and mechanical trades install this type of unit, and it is also used by HVAC and industrial service technicians in equipment requiring controlled vacuum levels.

Key Features

• 17 CFM open-flow vacuum output for high-volume vacuum demand
• Single-stage venturi design with no moving parts for low-maintenance operation
• 27 inches Hg maximum vacuum pressure
• 1/2 FPT vacuum port for standard pipe thread connections
• Accepts compressed air supply up to 68 psi
• 7 CFM air consumption for efficient operation on standard compressed air systems

Compatibility

Designed as an OEM-style replacement or direct-install venturi vacuum generator for compressed air systems requiring a single-stage vacuum source with 1/2 FPT porting.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician familiar with compressed air system plumbing. Isolate and depressurize the compressed air supply before making any connections. Use appropriate thread sealant on the 1/2 FPT vacuum port connections and verify all fittings are secure before restoring supply pressure. Follow applicable facility safety procedures and local codes when integrating into an existing compressed air or vacuum system.
