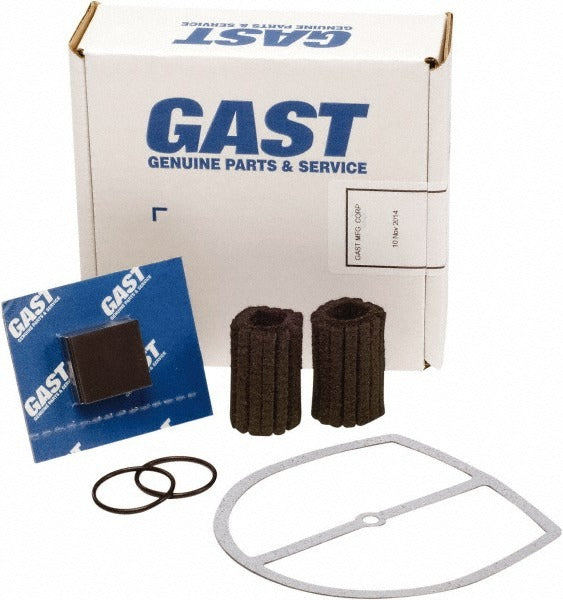

Gast K478 Air Compressor Repair Kit 9 Piece

Product Description

The GAST K478 is a 9-piece repair kit designed to restore proper operation in GAST 0323 and 0523 series oil-less compressors with internal filtration. The kit contains the consumable and wear components most commonly replaced during scheduled maintenance or after-failure service, including O-rings, a gasket, filters, vanes, and instructions. Weighing 3 pounds and packaged in a 10 x 10 x 3 inch box, it ships as a complete service set so technicians can complete the repair in a single work order without sourcing individual components separately.

This kit is intended for use on GAST 0323 and 0523 oil-less compressor models fitted with internal filtration, commonly referred to as the Q configuration. These compact oil-less compressors appear in medical, laboratory, industrial, and pneumatic control applications where clean, dry air output is required. The repair is typically performed during scheduled preventive maintenance intervals or when output pressure drops due to worn vanes or failed seals.

Key Features

• 9-piece kit covers O-rings, gasket, filters, vanes, and instructions in one package
• Fits GAST 0323 and 0523 oil-less Q models with internal filtration
• Includes sub-kits AK473 O-rings, AK521 gasket, and AK524 filters
• OEM-sourced components maintain original output performance specifications
• Complete instructions included to support field-level repair

Compatibility

Designed for use with GAST 0323 and 0523 oil-less compressor models configured with internal filtration (Q models). Compatibility outside these model families is not specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified technician familiar with oil-less compressor service procedures. Disconnect and lock out all electrical power and depressurize the system completely before disassembly. Follow the included manufacturer instructions for component sequence and orientation, particularly when installing vanes and gaskets. Reuse of old O-rings or filters is not recommended when this kit is used as a preventive maintenance service.
