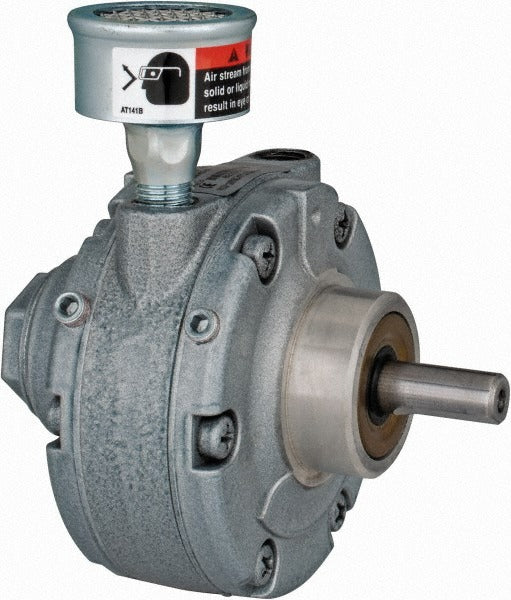

Gast 2AM-NCC-16 Air Motor 3/4 Hp Hub Mount Ccw

Product Description

The GAST 2AM-NCC-16 is a 3/4 horsepower air-actuated motor designed for industrial and commercial applications where compressed air is the preferred or required power source. It delivers a maximum of 3,000 RPM and a minimum of 300 RPM, with a rated torque of 28.10 inch-pounds. The motor features a hub mount style and a counterclockwise shaft rotation with a flat shaft configuration. A licensed mechanic or industrial technician typically installs this type of air motor in pneumatic-powered equipment, conveyor systems, or process machinery where spark-free operation or variable speed control is required.

This motor is suited for industrial process equipment, pneumatic tool drives, and automation systems that operate on compressed air supplies. The hub mount design allows for straightforward integration into existing drive assemblies. Maximum working pressure is rated at 100 psi, and maximum air flow is 30 CFM. The flat shaft and 1/2-inch shaft diameter are sized for standard pneumatic drive couplings used across a range of industrial machinery configurations.

Key Features

• 3/4 HP output with a speed range of 300 to 3,000 RPM
• Counterclockwise shaft rotation with flat shaft type
• Hub mount style for direct integration into drive assemblies
• 100 psi maximum working pressure rating
• 28.10 inch-pound torque output
• Compact overall length of 4.94 inches with 1/2-inch shaft diameter

Compatibility

Designed as an OEM-style replacement or direct-fit air motor for industrial pneumatic drive systems requiring a hub-mount, counterclockwise-rotation configuration at 3/4 HP.

Installation Notes

Installation should be performed by a qualified mechanic or pneumatic systems technician. Depressurize and isolate the air supply line fully before removing or installing the motor. Verify that the compressed air supply does not exceed the 100 psi maximum working pressure rating before commissioning. Ensure all fittings and thread connections are sealed and torqued per the equipment manufacturer specifications prior to returning the system to service.
