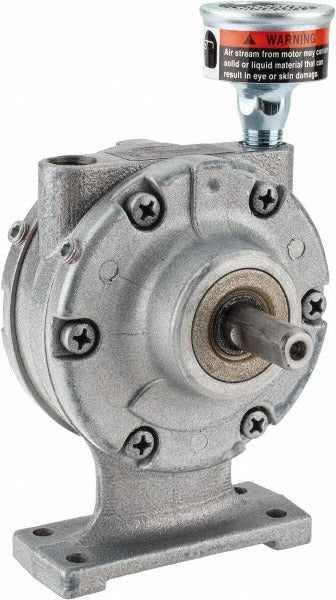

Gast 2AM-FCC-1 Air Motor 3/4 Hp Foot Mount Counterclockwise

Product Description

The GAST 2AM-FCC-1 is a 3/4 horsepower pneumatic air motor designed for industrial and commercial applications where electric power is impractical or hazardous. It delivers a counterclockwise shaft rotation with a maximum speed of 3,000 RPM and a minimum operating speed of 300 RPM, giving it a wide usable speed range. The motor operates on compressed air up to 100 psi and produces up to 28.10 inch-pounds of torque. A flat shaft measuring 0.5 inches in diameter and 1.13 inches in length connects to the driven load. The foot-mount configuration allows direct bolting to a base plate or frame. Technicians in manufacturing, pneumatic tooling, and process equipment maintenance are the typical installers.

This motor suits applications where variable speed control, spark-free operation, or washdown environments are required. The foot-mount style makes it appropriate for inline drive setups, conveyor systems, agitators, and similar equipment. The counterclockwise rotation must be confirmed against the driven component before installation. With an overall length of 4.94 inches and a weight of 6.75 pounds, the unit fits into compact drive assemblies where space and weight constraints matter.

Key Features

• 3/4 HP output with a speed range of 300 to 3,000 RPM
• Counterclockwise flat shaft rotation, 0.5 inches diameter, 1.13 inches length
• Maximum working pressure of 100 psi
• Foot-mount style for direct frame or base-plate mounting
• Maximum torque output of 28.10 inch-pounds
• Compact overall length of 4.94 inches and lightweight at 6.75 pounds

Compatibility

Designed as an OEM-style pneumatic air motor for industrial drive applications requiring a foot-mount, counterclockwise-rotation configuration at 3/4 HP.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic systems and compressed air safety. Depressurize and lock out the air supply before mounting or servicing the motor. Confirm shaft rotation direction and driven-component requirements before connecting the air line. Follow applicable OSHA and ANSI compressed air safety guidelines during installation and operation.
