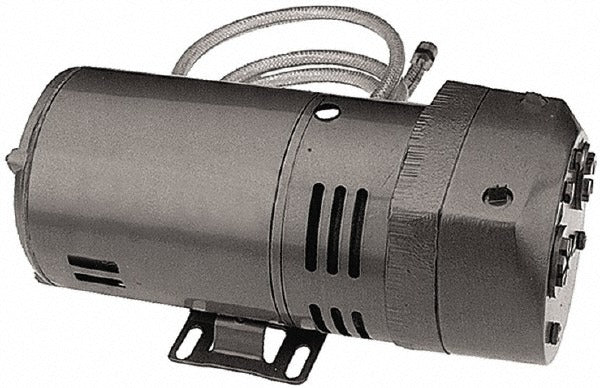

Gast 0523-101Q-G588NDX Rotary Vane Vacuum Pump 4.50 Cfm

Product Description

The GAST 0523-101Q-G588NDX is a single-phase rotary vane vacuum pump designed for continuous-duty industrial and commercial applications. It delivers 4.50 cubic feet per minute (CFM) of displacement and achieves a vacuum rating of 26 inches Hg, making it suitable for demanding evacuation and vacuum-generating tasks. The pump connects via a 1/4-inch NPT port and operates at a maximum of 1,425 to 1,725 RPM depending on line frequency. Licensed HVAC technicians, industrial maintenance technicians, and equipment service professionals are the primary installers of this unit.

This pump is suited for light industrial vacuum systems, laboratory equipment, packaging machinery, medical device support systems, and HVAC evacuation applications where a compact single-phase motor-driven pump is specified. It is rated for operating environments between 1 degrees C and 40 degrees C, making it appropriate for indoor conditioned or semi-conditioned spaces. The NPT end connection allows straightforward integration into standard pipe and hose assemblies common in trade and industrial settings.

Key Features

• 4.50 CFM displacement for reliable vacuum generation in continuous-duty cycles
• 26 inches Hg vacuum rating suitable for deep evacuation tasks
• 1/4-inch NPT port connection for compatibility with standard pipe fittings
• Single-phase motor operates at 1,425 or 1,725 RPM depending on supply frequency
• CE and cURus listed, meeting recognized safety and performance standards
• Rated for operating temperatures from 1 degrees C to 40 degrees C

Compatibility

Designed as an OEM-style rotary vane vacuum pump for single-phase electrical systems requiring NPT-ported vacuum connections in industrial, commercial, and HVAC service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with vacuum pump systems and applicable electrical codes, including NEC requirements for motor branch circuits. Disconnect and lock out all electrical power before servicing or replacing the pump. Ensure inlet and exhaust lines are clear and properly supported before startup. Do not operate the pump beyond its rated maximum working pressure of 10 psi or outside its specified temperature range.
