GASKETS 2R150 GASKETS 2R150 - 1/2 Brass Solenoid Valve

Product Description

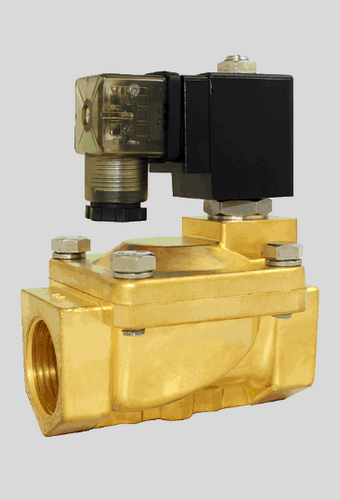

The GASKETS 2R150 is a two-way, normally closed solenoid valve with a half-inch size and a fifteen millimeter orifice. Constructed from brass for the body and stainless steel for the armature assembly, this valve is robust and reliable. It supports a wide range of media including liquid, water, oil, air, and gas. The valve operates efficiently in a pressure range from four point five PSI to two hundred thirty-two PSI and ensures effective operation with options for various seal materials like NBR, Viton, or EPDM.

• Features a half-inch size and is suitable for various media including water, oil, air, and gas.
• Designed for continuous duty with an IP65 ingress protection rating.
• Operates within a temperature range up to two hundred sixty-six degrees Fahrenheit based on seal material.

Product Highlights

This solenoid valve is optimal for professionals needing reliable control of liquid and gases in plumbing applications. It supports quick installation without orientation restrictions.

Product Information

Standard Information

• Valve Type: Two-way
• Action: Pilot diaphragm

Technical Specifications

• Orifice: fifteen millimeters
• CV: four point five
• Body Material: Brass
• Seal Options: NBR (Buna N), Viton (FKM), EPDM
• Armature Assembly: Stainless Steel
• Operational Temperature with NBR Seal: fourteen degrees Fahrenheit to one hundred seventy-six degrees Fahrenheit
• Operational Temperature with Viton Seal: fourteen degrees Fahrenheit to two hundred sixty-six degrees Fahrenheit
• Ambient Temperature: twenty-three degrees Fahrenheit to one hundred ten degrees Fahrenheit
• Operating Pressure: four point five PSI to two hundred thirty-two PSI
• Ingress Protection: IP65
• Insulation Class: H Class
• Electrical Connection: DIN 43650, Form A (ATEX options available)
