GASKETS 10R18 AERONAUTICAL STANDARD MACHINE SCREW

Product Description

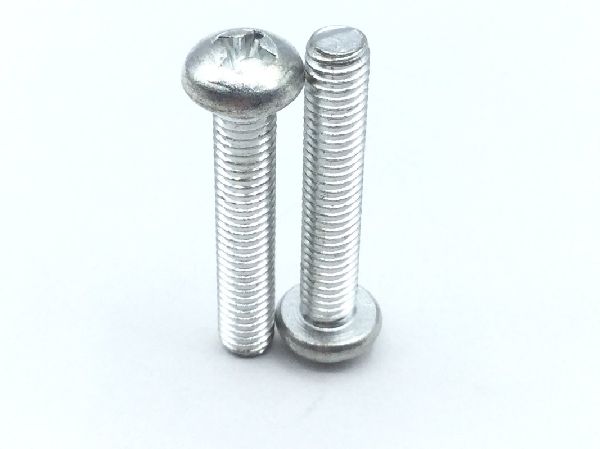

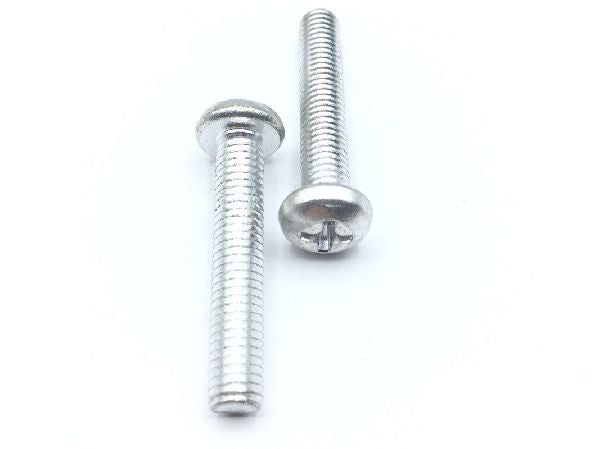

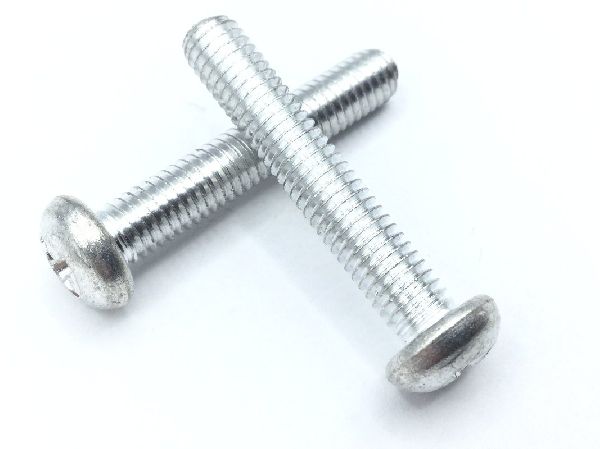

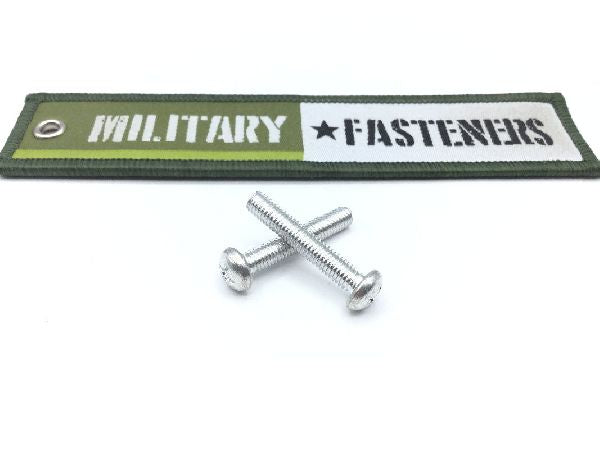

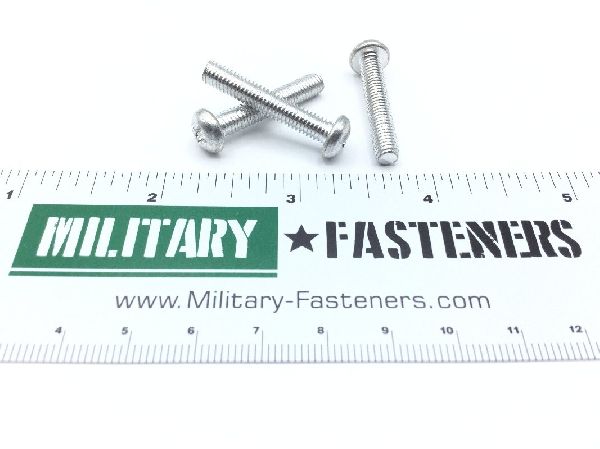

The GASKETS 10R18 is an aeronautical standard machine screw suitable for various fastening tasks. This screw is made from steel comp 1010 and meets Qq-s-671 federal specifications. It features a round head with a cross recess type 1 internal drive, allowing for precise installation.

• Constructed from steel comp 1010, compliant with Qq-s-671 federal specifications.
• Features a round head with cross recess type 1 drive for effective fastening.
• Treated with cadmium, adhering to Qq-p-416, type 1, class 3 specifications.

Product Highlights

The GASKETS 10R18 screw is designed for aeronautical applications, providing reliable performance under strict standards.

Product Information

Standard Information

• Brand: GASKETS
• MPN: 10R18

Technical Specifications

• Thread Class: 2a
• Thread Direction: Right-hand
• Thread Length: 1.125 inches minimum
• Fastener Length: 1.125 inches nominal
• Head Style: Round
• Head Diameter: 0.334 inches minimum and 0.359 inches maximum
• Head Height: 0.137 inches nominal
• Internal Drive Style: Cross recess type 1
• Thread Diameter: 0.190 inches
• Thread Qty Per Inch (tpi): 32
• Min. Tensile Strength (psi): 55000
• Screw Material: Steel comp 1010
• Screw Surface Treatment: Cadmium
• Thread Series Designator: Unf
• Thread Size: 10
• Material: Steel
• Length: 1-1/8
