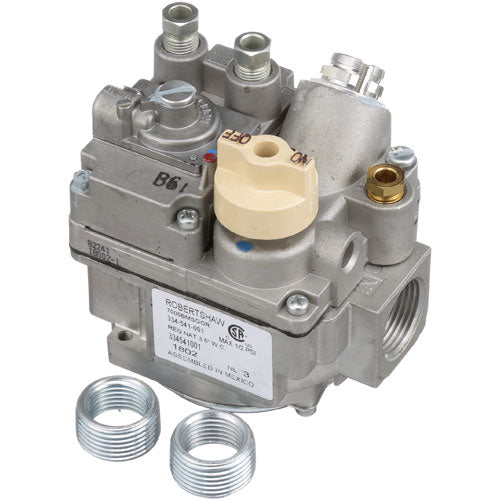

Gas Valve 3/4 for Vulcan Hart 00-412196-00G17

Product Description

This item for Vulcan Hart MPN 00-412196-00G17 is a gas valve designed for natural gas applications. It features a three-quarter inch female pipe thread, suitable for various installations in commercial kitchens.

• Compatible with Southbend Fryers Series 14 and 18.
• Includes bleed gas actuator for efficient operation.
• Can be converted to LP gas using part number 51-1470.

Product Highlights

This gas valve is crucial for controlling gas flow and ensuring safety in cooking equipment.

Product Information

Standard Information

• Brand: Vulcan Hart

Technical Specifications

• Size: 3/4 inch FPT
• Weight: 2.1 lbs
• Dimensions: 4.5 inches (length) x 2.5 inches (width) x 2.5 inches (height)
• BTU Rating: 300,000 BTU
• Gas Connection: Bleed gas ports 1/4 CCT
• Thermopile Type: Screw-in type
• Additional Info: Brass pile holding nut, 3/8-38 thread for magnet, 750MV, 500MV under load
• Compatible Models: Vulcan Hart Fryer 7891G, 7892G, HF91G, HF92G; Wolf Fryer SS-WTF-42, WTF-42
