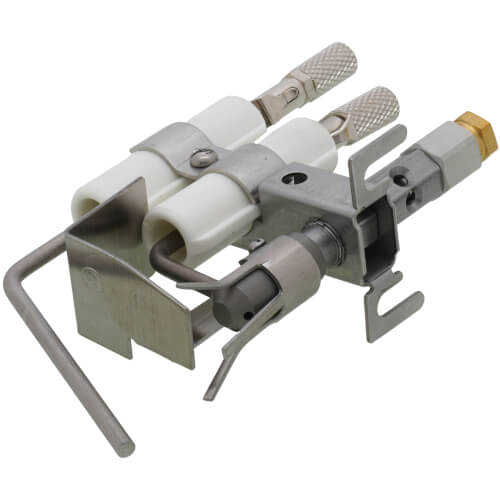

Honeywell Q179A1118 Flame Rectifier Gas Pilot 0.025in orifice dia 45 degree left-hand burner tip

Product Description

The Honeywell Q179A1118 Flame Rectifier Gas Pilot ensures precise gas control and reliable ignition in industrial applications. This gas pilot assembly features a 0.025 inch diameter orifice and a 45-degree left-hand port and tip style. It is designed for use with electronic flame safeguard controls.

• Includes a flame electrode rod and ignition electrode
• Suitable for intermittent or interrupted electrically ignited gas pilot burners
• Primary aerated type burner with stainless steel fins

Product Highlights

The Honeywell Q179A1118 enhances safety and efficiency in industrial settings by offering focused ignition and minimizing gas waste. It is built for durable performance in demanding environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q179A1118

Technical Specifications

• Orifice Diameter: 0.025 inches
• Burner Tip Angle: 45 degrees left-hand
• Weight: 0.55 lbs
• Length: 6 inches
• Width: 3.65 inches
• Height: 2.7 inches
• Fuel Type: Natural Gas
• Application: For Intermittent or Interrupted Ignition
