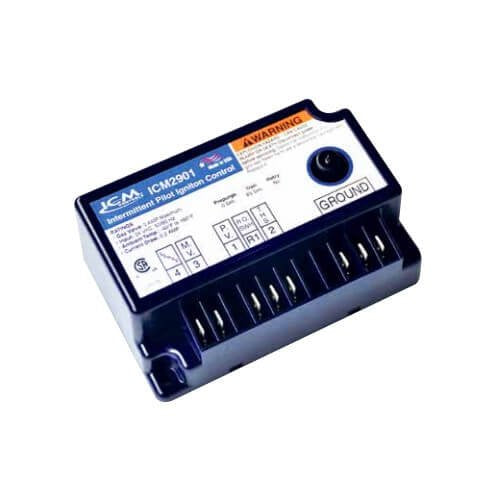

ICM Controls ICM2901 Intermittent Pilot Gas Ignition Control 24V Replacement G770RJA-1

Product Description

The ICM Controls ICM2901 Intermittent Pilot Gas Ignition Control is designed for use with intermittent pilot boilers, furnaces, and other heating appliances. This 24V ignition control is microprocessor-based for precision and reliability.

• Microprocessor-based control for precision
• Monitors timing, trial for ignition, rollout switch, flame sensing, and lockout
• Compatible with LP or Natural Gas

Product Highlights

The ICM2901 ensures safe and efficient ignition processes, reducing energy waste through intermittent pilot operation. It replaces Johnson Controls G770RJA-1, York 025-27762-700, and comparable ignition controls.

Product Information

Standard Information

• Brand: ICM Controls
• Product Type: Intermittent Pilot Gas Replacement
• Model/MPN: ICM2901

Technical Specifications

• Voltage: 24V
• Trial For Ignition: 85 Seconds
• Operating Temperature Range: -40 to 160°F
• Relative Humidity: 0% to 95% non-condensing
• Anticipator Setting: 0.2A plus valve load at 24 VAC
• Dimensions: 4.75 x 3.125 x 1.875 inches
