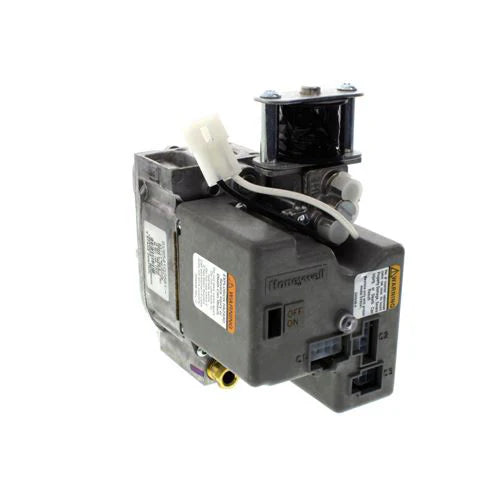

Resideo SV9541Q2561 Intermittent Hot Surface Pilot Ignition SmartValve Control

Product Description

The Resideo SV9541Q2561 Intermittent Hot Surface Pilot Ignition SmartValve Control combines gas flow control and electronic intermittent pilot sequencing into a single unit. This system ensures reliable operation of various gas-fired appliances such as furnaces, boilers, and heaters.

• Combines gas flow control and electronic pilot sequencing
• Includes LP conversion kit
• Suitable for furnaces, boilers, and heaters

Product Highlights

This control unit communicates directly with an electronic fan timer and interfaces with power stealing thermostats. The SV9541Q2561 ensures safe operation by controlling gas flow, ignition source, and monitoring appliance airflow.

Product Information

Standard Information

• MPN: SV9541Q2561
• Brand: Resideo
• Type: Two-stage Intermittent Hot Surface Pilot Ignition SmartValve Control
• Gas Type: Natural Gas

Technical Specifications

• Control Voltage (Thermostat or other call for heat): 24 Vac, 60 Hz
• Ignition Trial Time (sec): 90 sec
• PrePurge: 15 seconds
• Ambient Temperature Range (F): -40 F to +175 F
• Dimensions (in): 3.2 in wide x 4.9 in high x 4.1 in long
• Pressure Regulator Setting (psi): 1.7 in. wc low, 3.2 in. wc high
• Inlet/Outlet Size (in): 1/2 in. NPT x 1/2 in. NPT
• Maximum Capacity (ft³/hr): 200 ft³/hr
