Garvin MBC-1420WM Beam Clamp w/ Extra Wide 3-1/8

Product Description

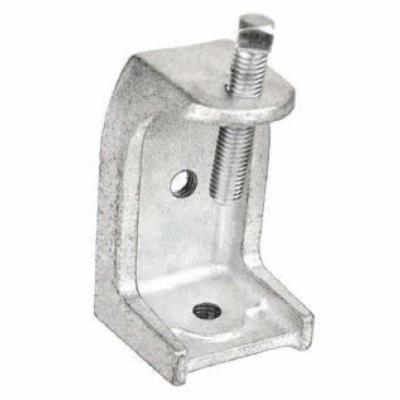

The Garvin MBC-1420WM beam clamp is designed with an extra wide 3-1/8 inch opening. These heavy duty beam clamps are used to hang medium, light, or heavy loads from structural beams. The hardened cup point screw and malleable iron body will not distort or slip off beam edge when tightened. They are tapped for rods on the bottoms and backs.

• Heavy duty beam clamps
• Used to hang medium, light, or heavy loads from structural beams
• Hardened cup point screw and malleable iron body will not distort or slip off beam edge when tightened

Product Highlights

Malleable iron beam clamps with extra wide 3-1/8 in jaw opening and 1/4-20 threaded holes. Tapped for rods on the bottoms and backs.

Product Information

Standard Information

• Brand: Garvin
• Manufacturer Part Number: MBC-1420WM
• Country of Origin: China

Technical Specifications

• Catalog Number: MBC-1420WM
• Standards: cUL Listed
• Suitable For Use With: Conduit Hanger, Bridle Ring and Drop 1/4-20 Rod
• Type: Wide Mouth
• Brand: GARVIN®
• Manufacturer: Garvin Industries
• Finish: Zinc Plated
• Load Capacity: 450 lb
• Material: Malleable Iron
• Rod Size: 1/4-20
