Garvin Industries MBC-3816WM Malleable Iron Beam Clamp 3/8-16 3-1/8 Jaw Opening

Product Description

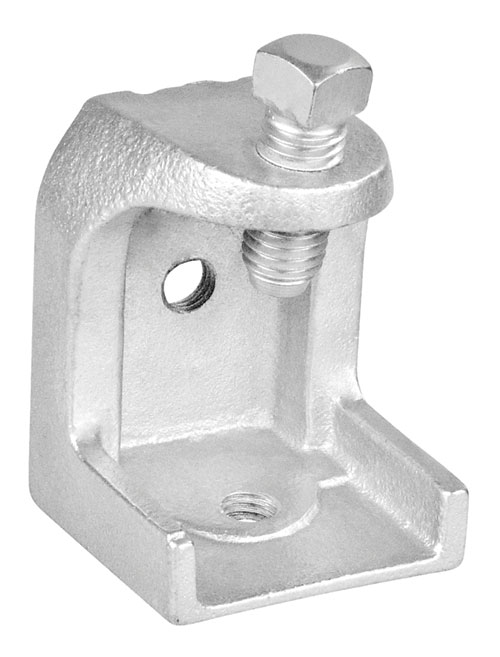

The Garvin Industries MBC-3816WM beam clamp is designed for heavy-duty applications. It features a three-eighths inch by sixteen threaded hole and extra wide three and one-eighth inch jaw opening. Ideal for use with conduit hangers, bridle rings, and drop rods, this clamp ensures stable support for medium to heavy loads.

• Malleable iron body for strength and durability.
• Designed for heavy loads with a 300-pound load capacity.
• Meets UL, CUL, and RoHS compliance standards.

Product Highlights

This beam clamp provides secure attachment to structural beams, preventing distortion or slip with its hardened screw design.

Product Information

Standard Information

• Brand: Garvin Industries
• Material: Zinc Plated Iron

Technical Specifications

• UPC: 78559299117
• Catalog Number: MBC-3816WM
• Screw Size: 3/8 Inch-16 TPI
• Load Capacity: 300 Pound
• Application: Conduit Hanger, Bridle Ring, Drop Rod
• Compliance: RoHS Compliant; Jaw Opening for Large Beam Size 3-1/8 Inch; Applicable Standard UL, CUL
• Type: Wide Jaw Opening
