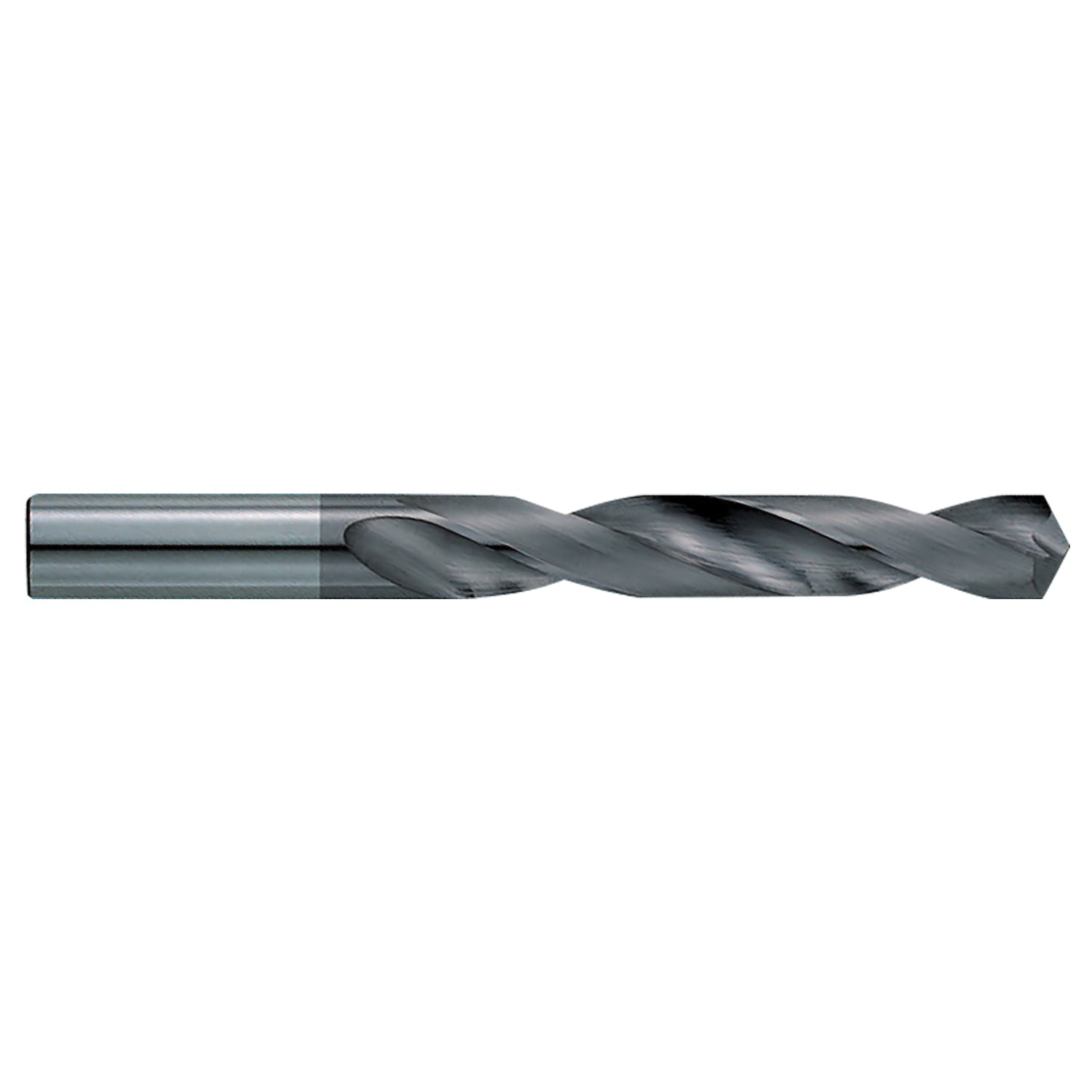

GARR GARRT-89706 Jobber Length Drill Bit

Product Description

The GARR Jobber Length Drill Bit, model GARRT-89706, is designed for general-purpose use. It features a diameter of three eighths of an inch and a 135-degree point angle for enhanced performance. This drill bit is constructed from submicron grain solid carbide and is Balinit Hardlube coated, ensuring durability and heat resistance.

• Suitable for a variety of materials, including carbon steel and ductile iron.
• Two flute design allows for efficient chip removal during drilling.
• Right hand cutting direction with a self-centering point for accurate drilling.

Product Highlights

The GARR 89706 is ideal for metalworking applications, providing exceptional drilling capability across multiple material types.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-89706

Technical Specifications

• Drill Diameter - Fraction: 3/8 in
• Drill Diameter - Decimal Inch: 0.375 in
• Overall Length: 4-1/4 in
• Flute Length: 2-3/4 in
• Cutting Depth: 5XD
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Point Type: 4-Facet/Self-Centering
• Finish: Balinit Hardlube Coated
• Applicable Materials: Carbon Steel, Cast Materials like Aluminum, Steel, Ductile Iron and Gray Iron, Cobalt Base Alloy, High Strength Tool Steel, Iron Base Alloy, Medium Alloy Tool Steel, Monel, Nickel Base Alloy, Stainless Steel and Titanium Alloy
