GARR GARRT-80257 80257 230RA Center Cutting Single End Standard Length End Mill

Product Description

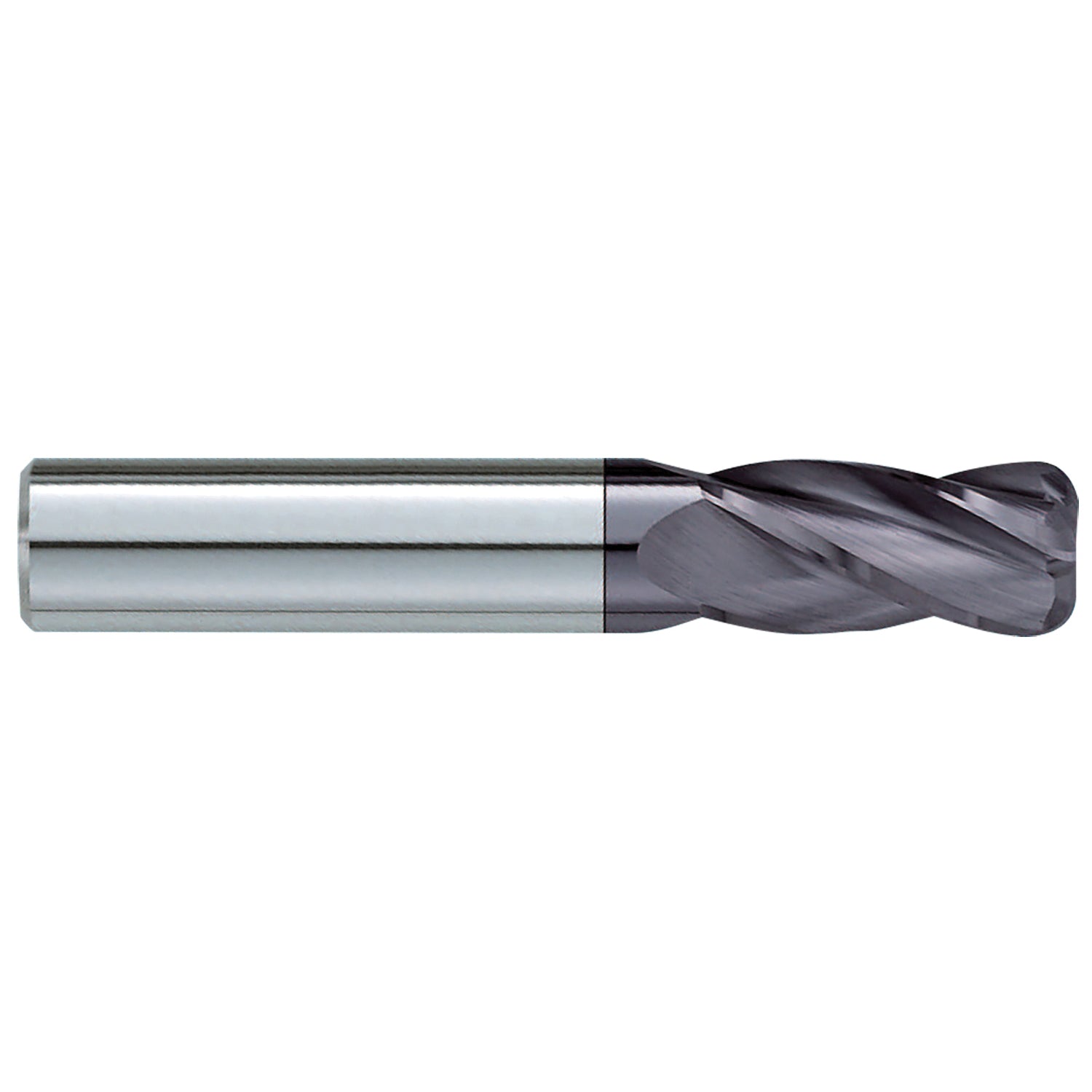

The GARR End Mill GARRT-80257 is a center cutting single end tool designed for standard length applications. This end mill has a diameter of three-eighths inches and features a corner radius of zero point zero three inches. It measures two and a half inches in overall length with a cut length of seven-eighths inches. The four flutes provide an efficient cutting experience.

• Made from submicron grain solid carbide
• TiAlN coated for improved longevity
• Suitable for dry or semi-dry machining environments

Product Highlights

This end mill is effective in creating precise cuts and is compatible with CNC machines, enhancing productivity.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-80257

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 deg
• Material: Submicron Grain Solid Carbide
• Series: 230RA
• Shank Length: 1-5/8 in
• Shank Type: Plain/Round
• Type: Center Cutting Single End Standard Length
• Cutter Diameter: 3/8 in
• Corner Radius: 0.03 in
• Length of Cut: 7/8 in
• Number of Flutes: 4
• Shank Diameter: 3/8 in
• Overall Length: 2-1/2 in
• Finish: TiAlN Coated
