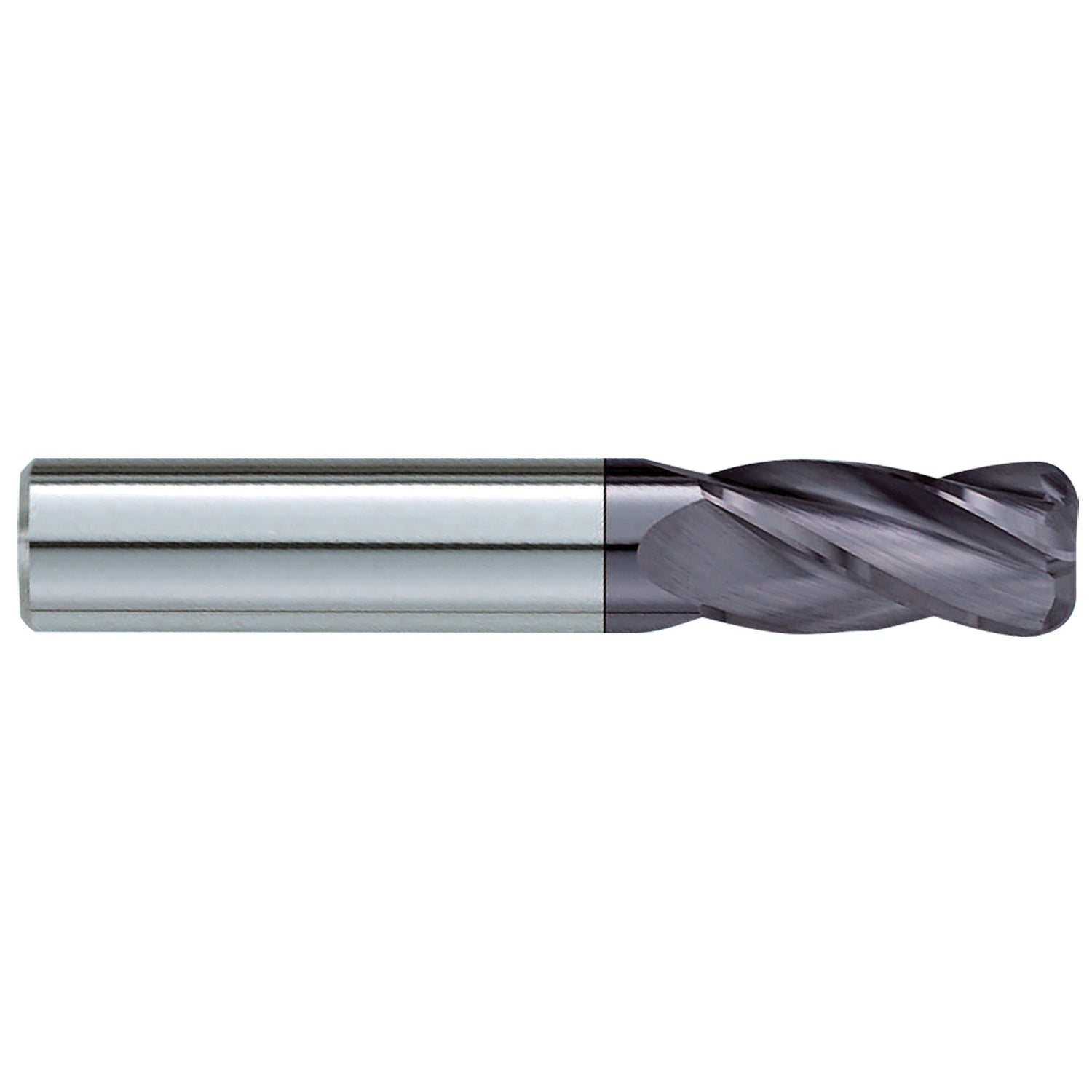

Garr GARRT-80137 GARR 80137 230RA Center Cutting Single End Standard Length End Mill

Product Description

The Garr GARRT-80137 is a center cutting single end standard length end mill designed for precision machining. This product features a cutter diameter of one-fourth inch and a corner radius of zero point zero four five inches, making it suitable for detailed applications. It has a total length of two and one-half inches and a cut length of seven-eighths inch. The tool includes four flutes that enhance material removal and provide smooth cutting performance.

• Designed for dry or semi-dry machining
• Features TiAlN coating for improved performance
• Standard length with a spiral flute design for efficient cutting

Product Highlights

This end mill is built with a submicron grain solid carbide for durability. It is suitable for making strong corners and achieving intricate shapes in various materials.

Product Information

Standard Information

• Brand: Garr
• Manufactured By: Garr Tool Company

Technical Specifications

• Type: Center Cutting Single End Standard Length
• Cutter Diameter: 1/4 inch
• Corner Radius: 0.045 inch
• Length of Cut: 7/8 inch
• Number of Flutes: 4
• Shank Diameter: 5/16 inch
• Overall Length: 2-1/2 inches
• Cutting Direction: Right Hand
• Flute Type: Spiral
• Shank Type: Plain/Round
• Finish: TiAlN Coated
• Helix Angle: 30 degrees
• Material: Submicron Grain Solid Carbide
• Shank Length: 1-5/8 inches
• Series: 230RA
