GARR GARRT-80127 230RA Center Cutting Single End Standard Length End Mill, 1/4 in Dia Cutter, 0.03 in Corner Radius, 3/4 in Length of Cut

Product Description

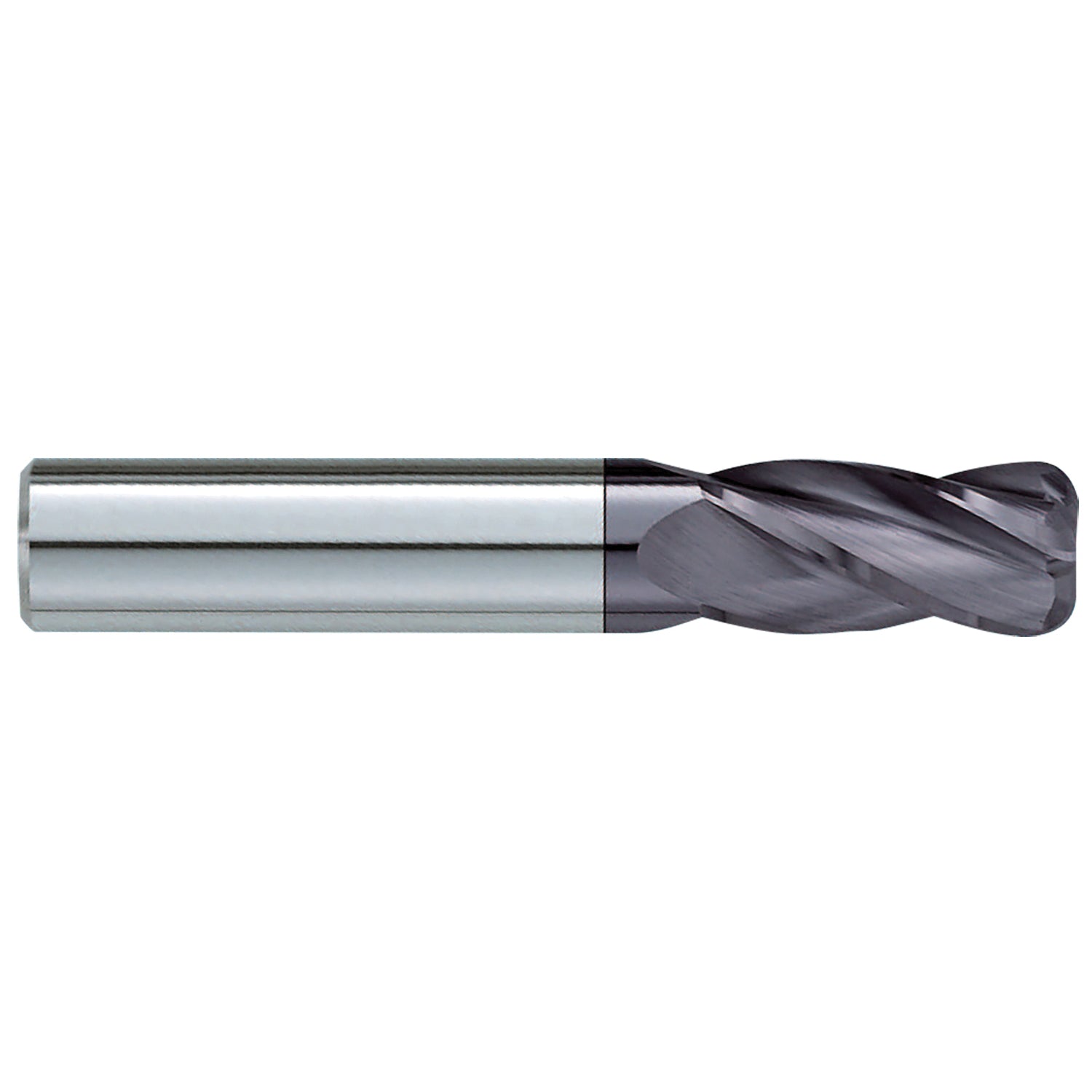

The GARR End Mill GARRT-80127 is a center cutting single end standard length end mill. This tool features a quarter inch diameter cutter with a corner radius of 0.03 inches. It is made of submicron grain solid carbide and has a titanium aluminum nitride coating for durability.

• Center cutting design for versatility
• Four flutes for efficient chip removal
• Suitable for dry or semi-dry machining

Product Highlights

GARRT-80127 end mill offers reliable performance for milling applications. It is designed for cutting metal materials with precision and efficiency.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-80127

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Submicron Grain Solid Carbide
• Series: 230RA
• Shank Length: 1-3/4 inches
• Shank Type: Plain/Round
• Type: Center Cutting Single End Standard Length
• Cutter Diameter: 1/4 inches
• Corner Radius: 0.03 inches
• Length of Cut: 3/4 inches
• Number of Flutes: 4
• Shank Diameter: 1/4 inches
• Overall Length: 2-1/2 inches
• Finish: TiAlN Coated
