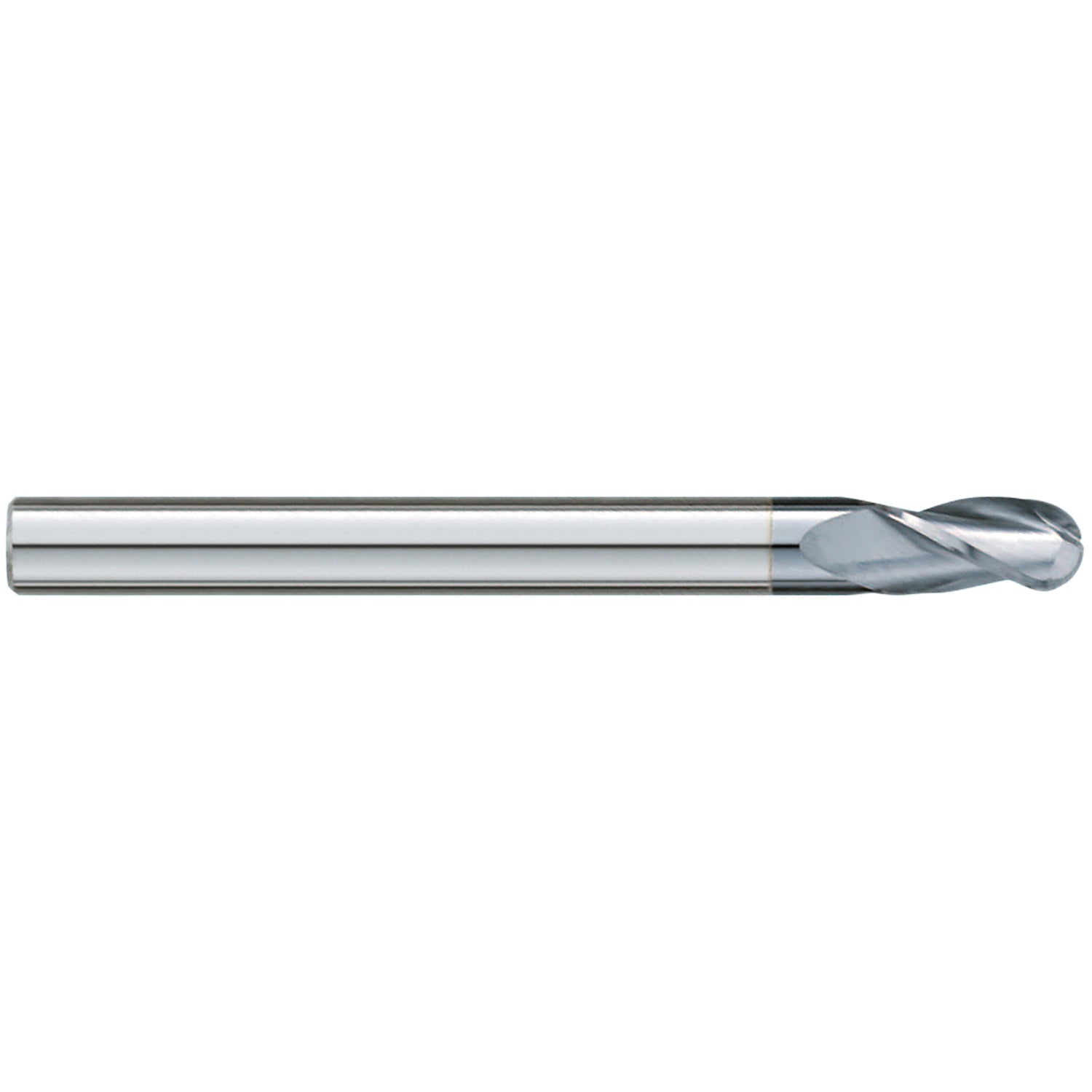

GARR GARRT-55574 723MC Ball End Center Cutting Extra Length Single End Mill

Product Description

The GARR GARRT-55574 is a ball end center cutting extra length single end mill. This tool features a one-fourth inch diameter cutter with a total length of three inches and a one inch length of cut. The tool has three spiral flutes. It is designed with a right-hand cutting direction and a thirty-degree helix angle. The mill is constructed from solid submicron carbide and comes with a titanium carbonitride (TiCN) coating for improved performance.

• Ball end for versatile cutting applications
• TiCN coating for enhanced durability
• Cutter length of one inch for deeper cuts

Product Highlights

This end mill is ideal for machining curved surfaces and complex shapes due to its ball end design. The TiCN coating allows for better wear resistance and extends tool life, making it suitable for various materials.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-55574

Technical Specifications

• Cutter Diameter: 1/4 in
• Shank Diameter: 1/4 in
• Length of Cut: 1 in
• Overall Length: 3 in
• Number of Flutes: 3
• Shank Length: 2 in
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Helix Angle: 30 deg
• Material: Solid Submicron Carbide
• Series: 723MC
• Finish: TiCN Coated
