GARR GARRT-18317 GARR 18317 330MA Ball End Center Cutting Single End Standard Length End Mill

Product Description

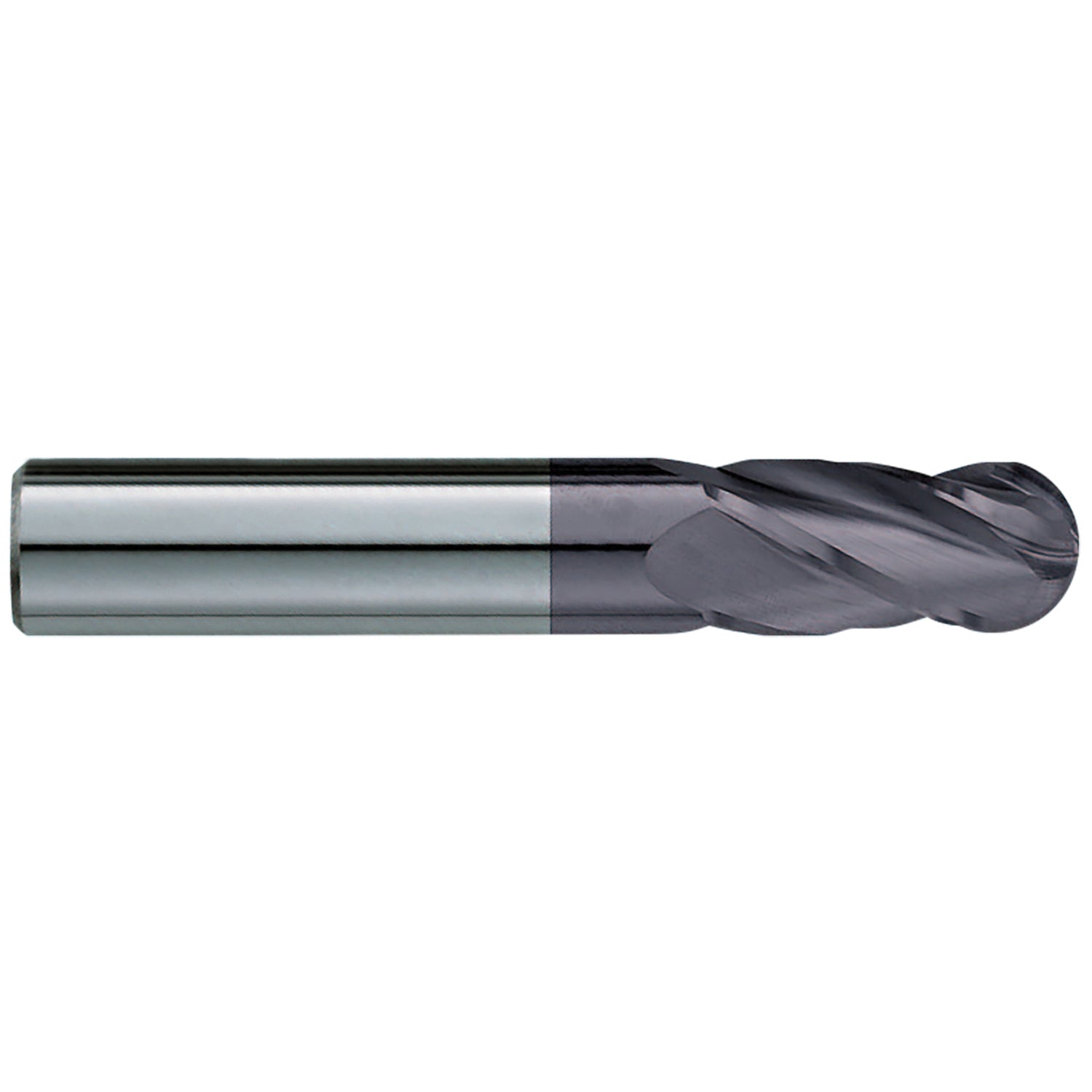

The GARR GARRT-18317 is a ball end center cutting single end standard length end mill. This tool is designed for precision milling and is constructed from solid submicron carbide, providing durability in various machining tasks. The TiALN coating enhances its performance by reducing friction and improving wear resistance.

• Cutter diameter is half an inch.
• Overall length measures three inches with a cut length of one inch.
• Includes four flutes for effective chip removal.

Product Highlights

This end mill is versatile and suitable for dry or semi-dry machining applications.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-18317

Technical Specifications

• Cutter Diameter: 1/2 in
• Length of Cut: 1 in
• Overall Length: 3 in
• Shank Diameter: 1/2 in
• Shank Length: 2 in
• Number of Flutes: 4
• Cutter Type: Ball End Center Cutting
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Helix Angle: 30 deg
• Finish: TiALN Coated
• Material: Solid Submicron Carbide
• Series: 330MA
