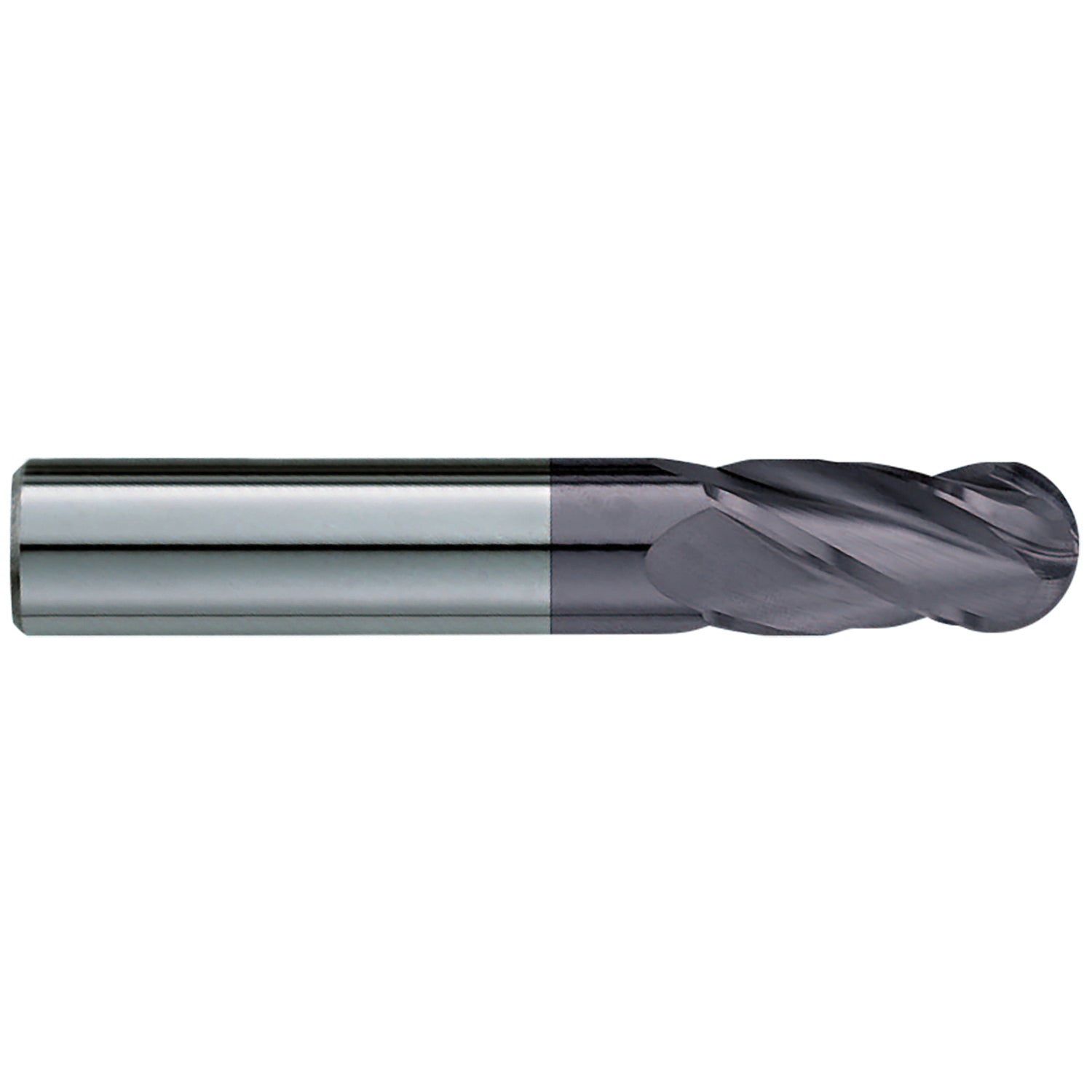

GARR GARRT-18157 330MA Ball End Center Cutting Single End Standard Length End Mill

Product Description

The GARR GARRT-18157 is a precision end mill designed for various milling tasks. It features a one-fourth inch cutter diameter and measures two and one-half inches in overall length. This end mill has a three-quarter inch length of cut, making it suitable for diverse applications in metalworking. The tool is constructed from solid submicron carbide and is coated with TiALN for enhanced durability.

• Ball end design for improved cutting
• Spiral flute construction
• 4 flutes for effective chip removal

Product Highlights

This end mill is designed for dry or semi-dry machining and offers a right-hand cutting direction with a thirty-degree helix angle.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-18157

Technical Specifications

• Type: Ball End Center Cutting Single End Standard Length
• Cutter Diameter: 1/4 in
• Length of Cut: 3/4 in
• Number of Flutes: 4
• Shank Diameter: 1/4 in
• Overall Length: 2-1/2 in
• Shank Length: 1-3/4 in
• Helix Angle: 30 deg
• Cutting Direction: Right Hand
• Flute Type: Spiral
• Material: Solid Submicron Carbide
• Finish: TiALN Coated
• Series: 330MA
