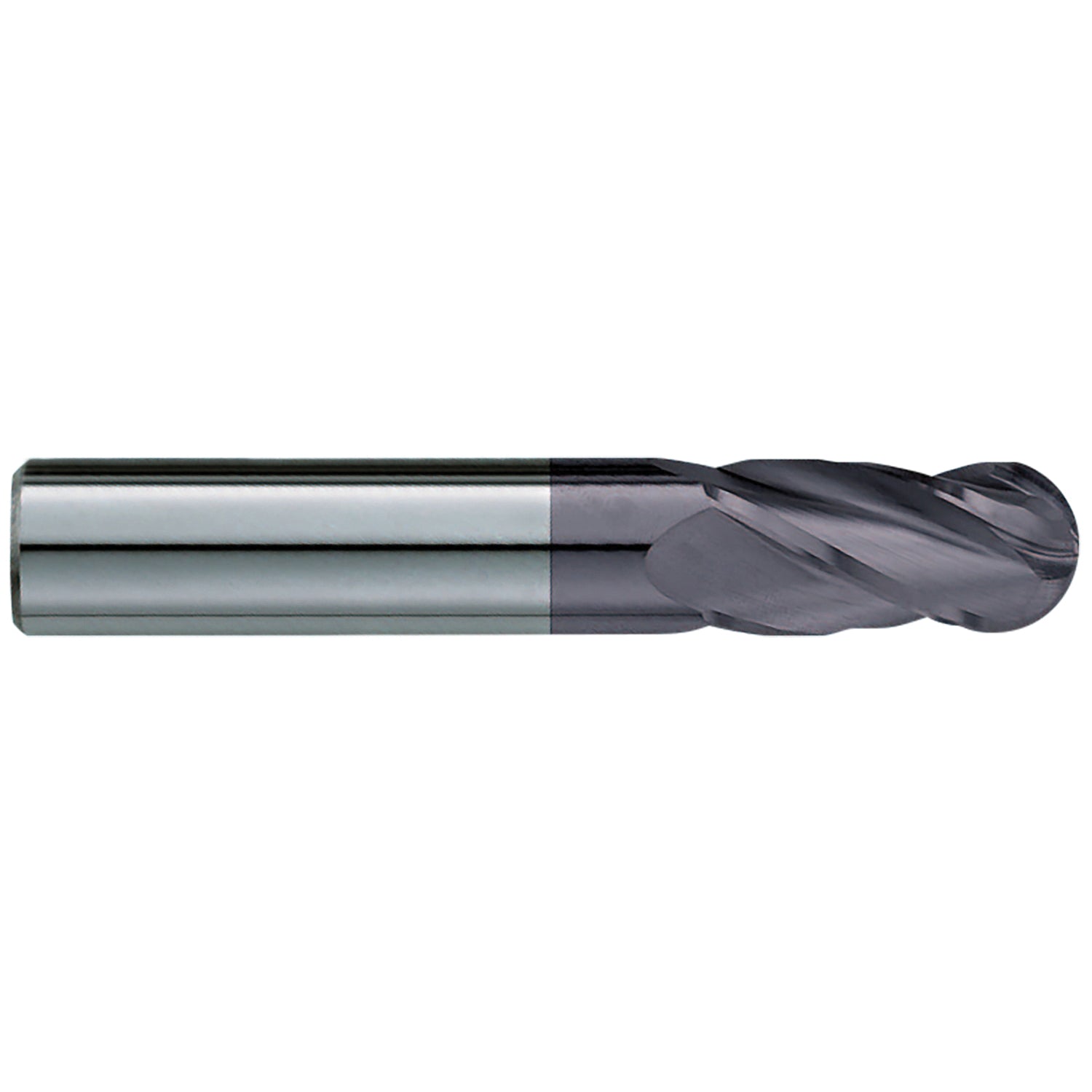

GARR GARRT-18117 330MA Ball End Center Cutting Single End Standard Length

Product Description

The GARR 18117 Ball End Mill features a design suitable for various cutting tasks. This tool is made by GARR and is identified by the MPN GARRT-18117. It has a diameter of three-sixteenths of an inch and is designed for precision work with its four flutes.

• Ball end center cutting
• TiALN coated for improved performance
• Solid submicron carbide construction

Product Highlights

This product is capable of dry or semi-dry machining applications. It is engineered with specific features to enhance cutting efficiency and provide longer tool life.

Product Information

Standard Information

• Brand: GARR
• Type: Ball End Center Cutting Single End Standard Length

Technical Specifications

• Cutter Diameter: 3/16 in
• Length of Cut: 5/8 in
• Overall Length: 2 in
• Shank Diameter: 3/16 in
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Helix Angle: 30 deg
• Shank Length: 1-3/8 in
• Material: Solid Submicron Carbide
• Flute Type: Spiral
• Finish: TiALN Coated
• Series: 330MA
