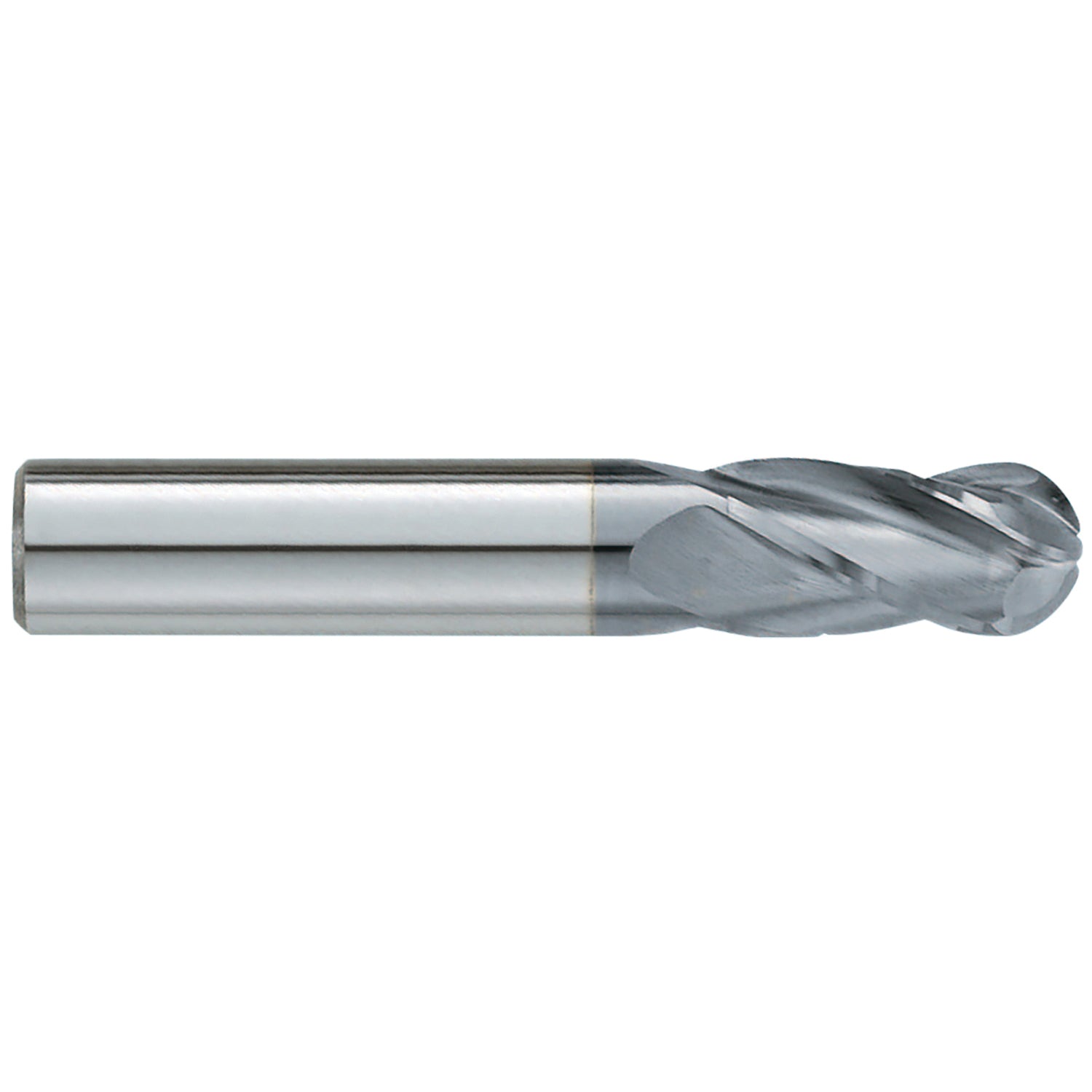

GARR GARRT-18064 330MC Ball End Center Cutting Single End Standard Length 7/64 in

Product Description

The GARR Ball End Mill, model GARRT-18064, is a versatile tool designed for milling operations. This center cutting single end mill is part of the 330MC series, featuring a cutter diameter of seven sixty-fourths of an inch and an overall length of one and one-half inches.

• Ball End for effective contouring
• Titanium Carbonitride (TiCN) coated for enhanced durability
• Solid submicron carbide construction

Product Highlights

This end mill is optimized for precision milling tasks. Its right-hand cutting design and spiral flute maximize material removal rates while ensuring a smooth finish.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-18064

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Series: 330MC
• Shank Length: 1-1/8 inches
• Type: Ball End Center Cutting Single End Standard Length
• Cutter Diameter: 7/64 inches
• Length of Cut: 3/8 inches
• Number of Flutes: 4
• Shank Diameter: 1/8 inches
• Overall Length: 1-1/2 inches
• Finish: TiCN Coated
