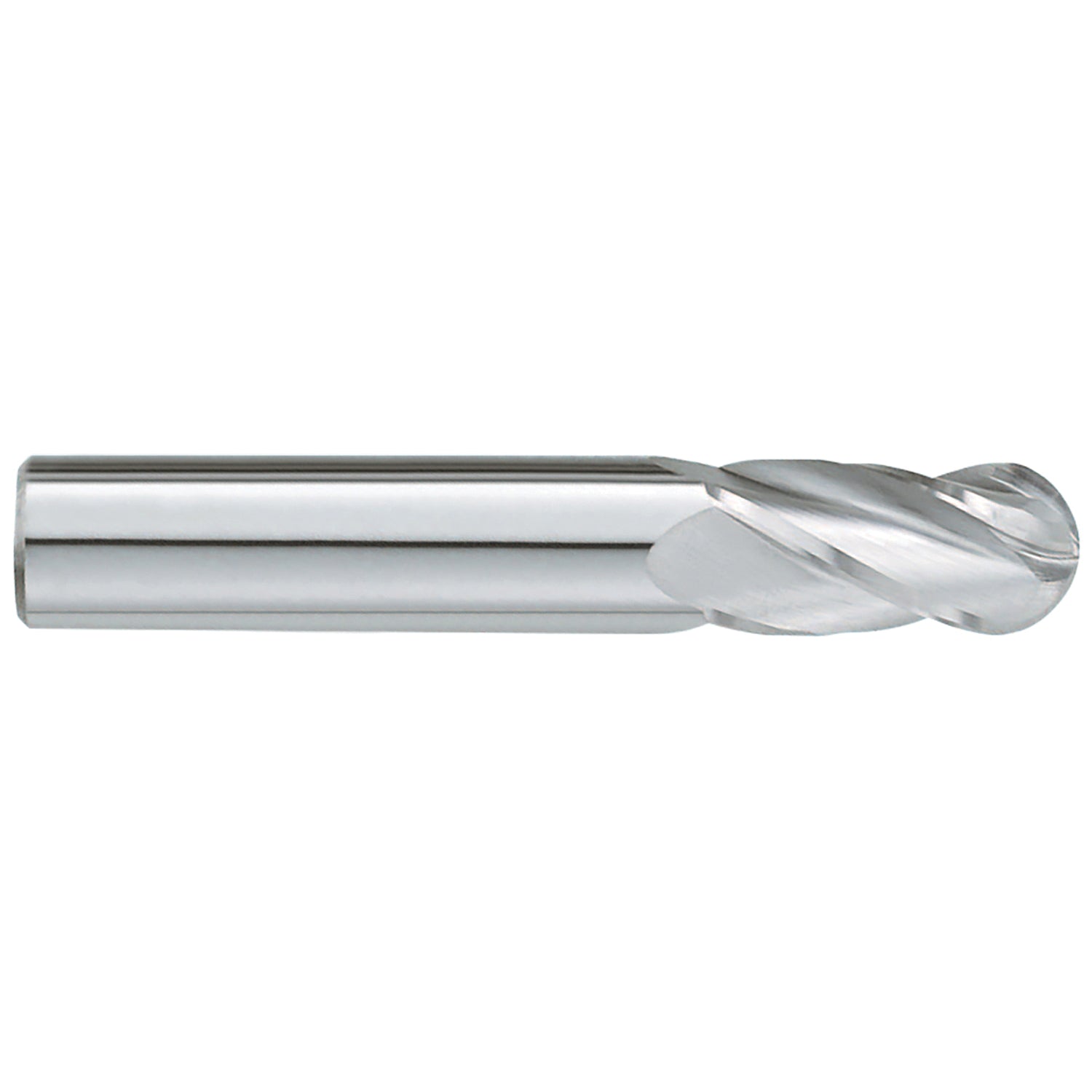

GARR GARRT-18010 330M Ball End Center Cutting Standard Length End Mill

Product Description

The GARR GARRT-18010 is a ball end center cutting standard length end mill ideal for precision machining tasks. This end mill features a cutter diameter of one thirty-second inches, an overall length of one and one-half inches, and a length of cut measuring three thirty-seconds inches. It has four flutes designed for efficient chip removal. The tool's shank diameter is one-eighth inches, providing compatibility with standard holders.

• Ball End Center Cutting Design
• Solid Submicron Carbide Material
• Ideal for Milling Applications

Product Highlights

This end mill is suitable for various milling applications due to its ball end design and solid carbide construction.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-18010

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Series: 330M
• Shank Length: 1-13/32 inches
• Type: Ball End Center Cutting Standard Length
• Cutter Diameter: 1/32 inches
• Length of Cut: 3/32 inches
• Number of Flutes: 4
• Shank Diameter: 1/8 inches
• Overall Length: 1-1/2 inches
• Finish: Uncoated
