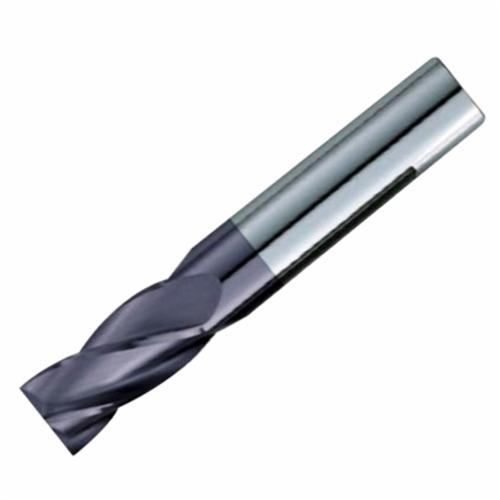

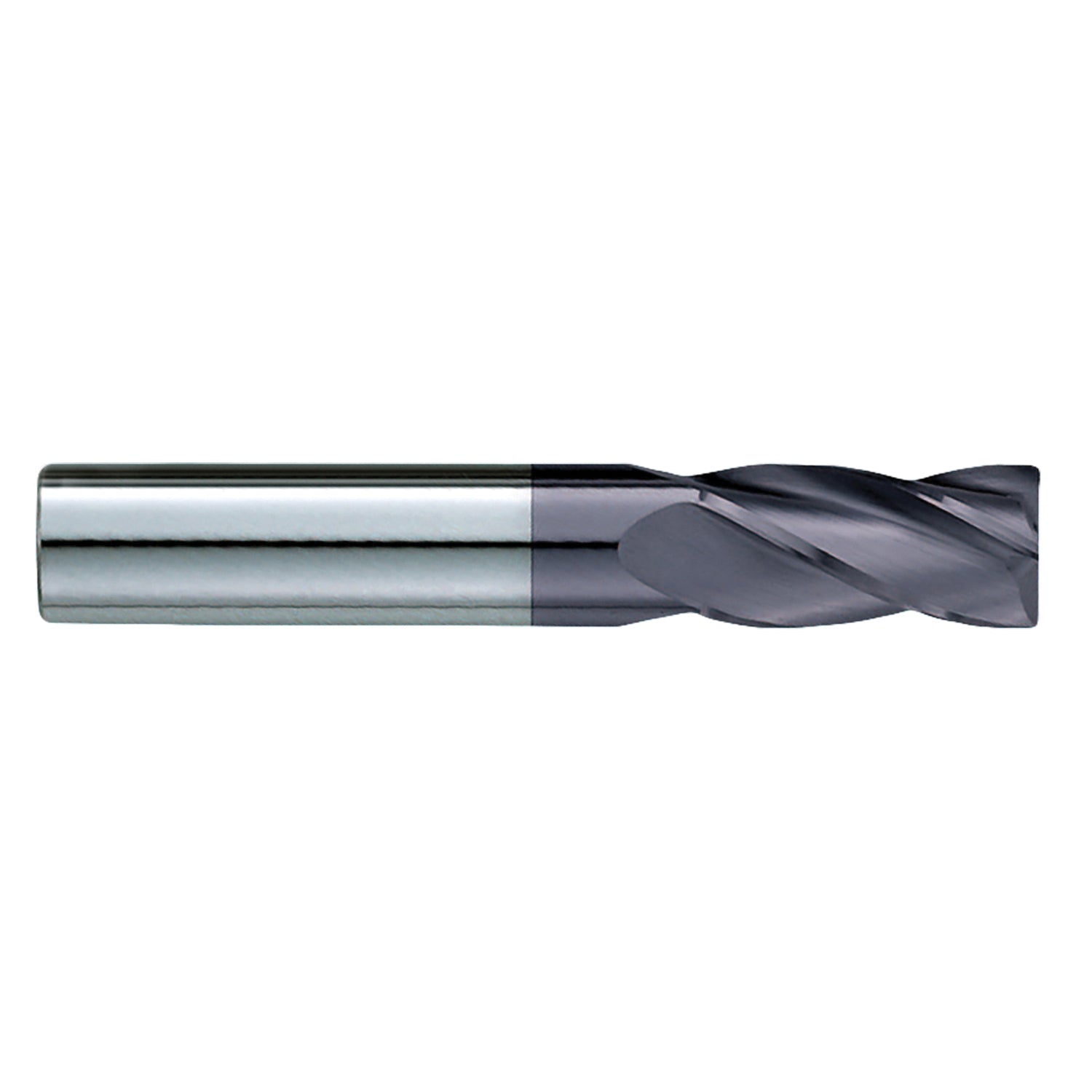

GARR GARRT-13237 230MA Center Cutting Square End Standard Length End Mill, 3/8 in Dia Cutter, 7/8 in Length of Cut, 3/8 in Dia Shank

Product Description

The GARR End Mill GARRT-13237 is a center cutting square end standard length end mill. This tool features a three eighths inch diameter cutter and a total length of two and one half inches. It has a length of cut of seven eighths inch and is equipped with four flutes for efficient chip removal.

• Diameter cutter of 3/8 inch
• Overall length of 2-1/2 inches
• Titanium Aluminum Nitride (TiALN) coated for durability

Product Highlights

This end mill is suitable for dry or semi-dry machining. The TiALN coating increases wear resistance and helps achieve faster cutting speeds compared to uncoated tools.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-13237

Technical Specifications

• Type: Center Cutting Square End Standard Length
• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Series: 230MA
• Shank Length: 1-5/8 inches
• Shank Type: Plain/Round
• Cutter Diameter: 3/8 inch
• Length of Cut: 7/8 inch
• Number of Flutes: 4
• Shank Diameter: 3/8 inch
• Overall Length: 2-1/2 inches
• Finish: TiALN Coated
