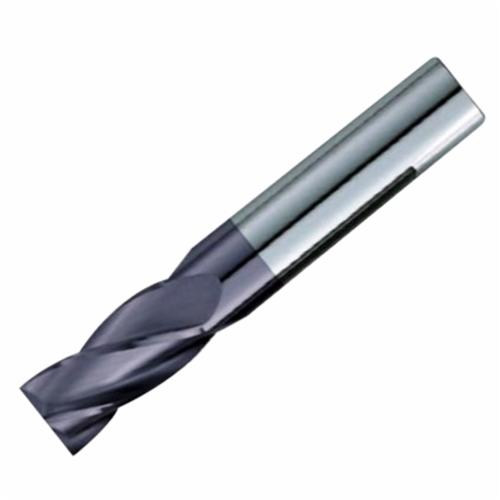

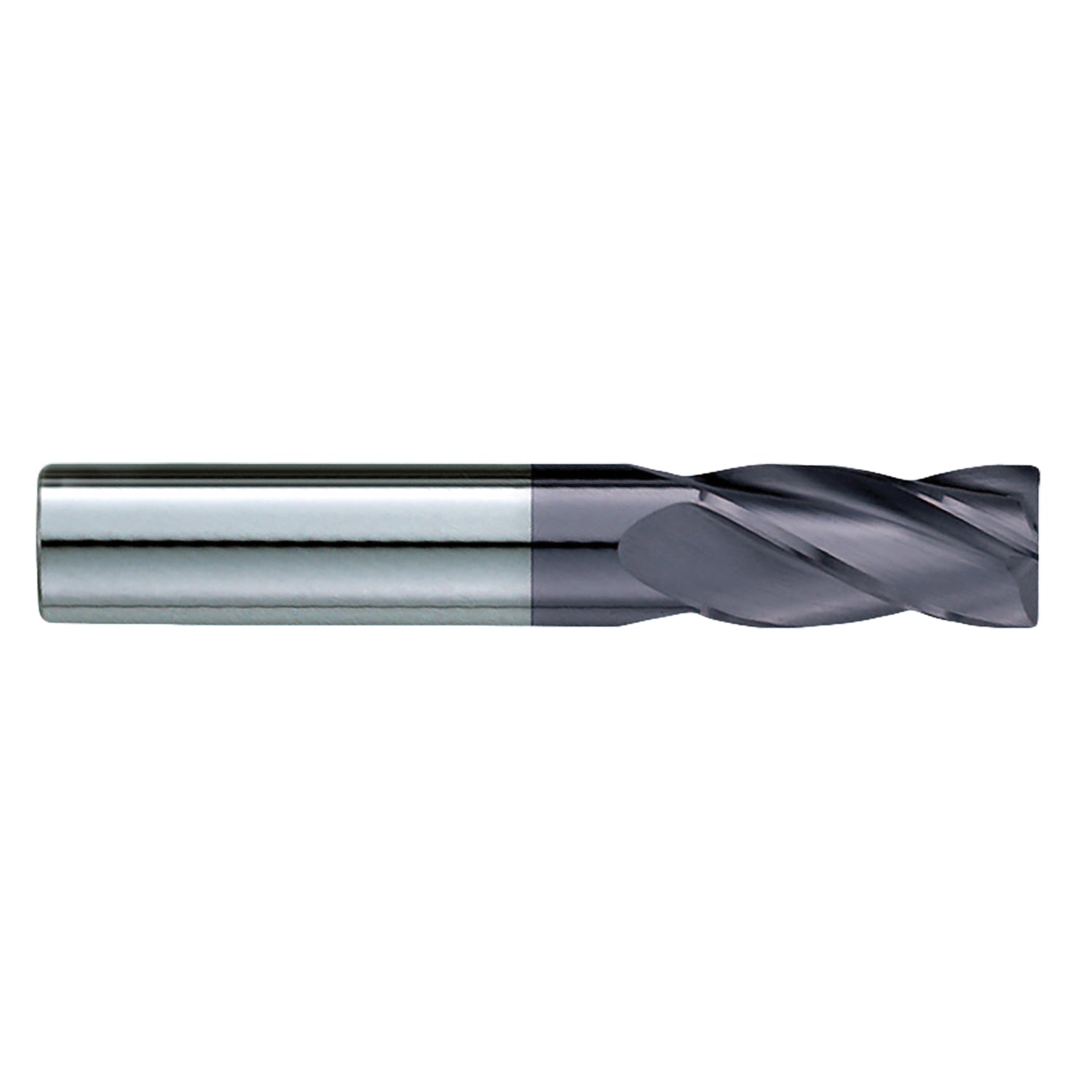

GARR GARRT-13197 230MA Center Cutting Square End Standard Length End Mill 5/16 in Dia Cutter 230MA

Product Description

The GARR GARRT-13197 is a center cutting square end standard length end mill from the 230MA series. This end mill features a cutter diameter of five-sixteenths of an inch and an overall length of two and one-half inches. The tool includes four spiral flutes and utilizes a right-hand cutting direction, which is effective for various machining tasks. It is suitable for dry or semi-dry machining applications. The product is made from solid submicron carbide and is coated with TiALN for extended tool life and performance.

• Center cutting design for versatile applications
• TiALN coating ensures durability and longevity
• Optimized for dry machining

Product Highlights

This end mill is designed for high-speed machining, providing rapid cutting action that can be up to forty percent faster than uncoated tools.

Product Information

Standard Information

• Brand: GARR
• Series: 230MA

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 deg
• Material: Solid Submicron Carbide
• Shank Length: 1-5/8 in
• Shank Type: Plain/Round
• Cutter Diameter: 5/16 in
• Length of Cut: 7/8 in
• Number of Flutes: 4
• Shank Diameter: 5/16 in
• Overall Length: 2-1/2 in
• Finish: TiALN Coated
