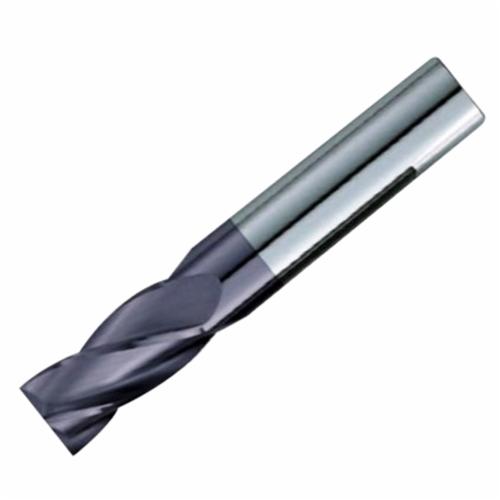

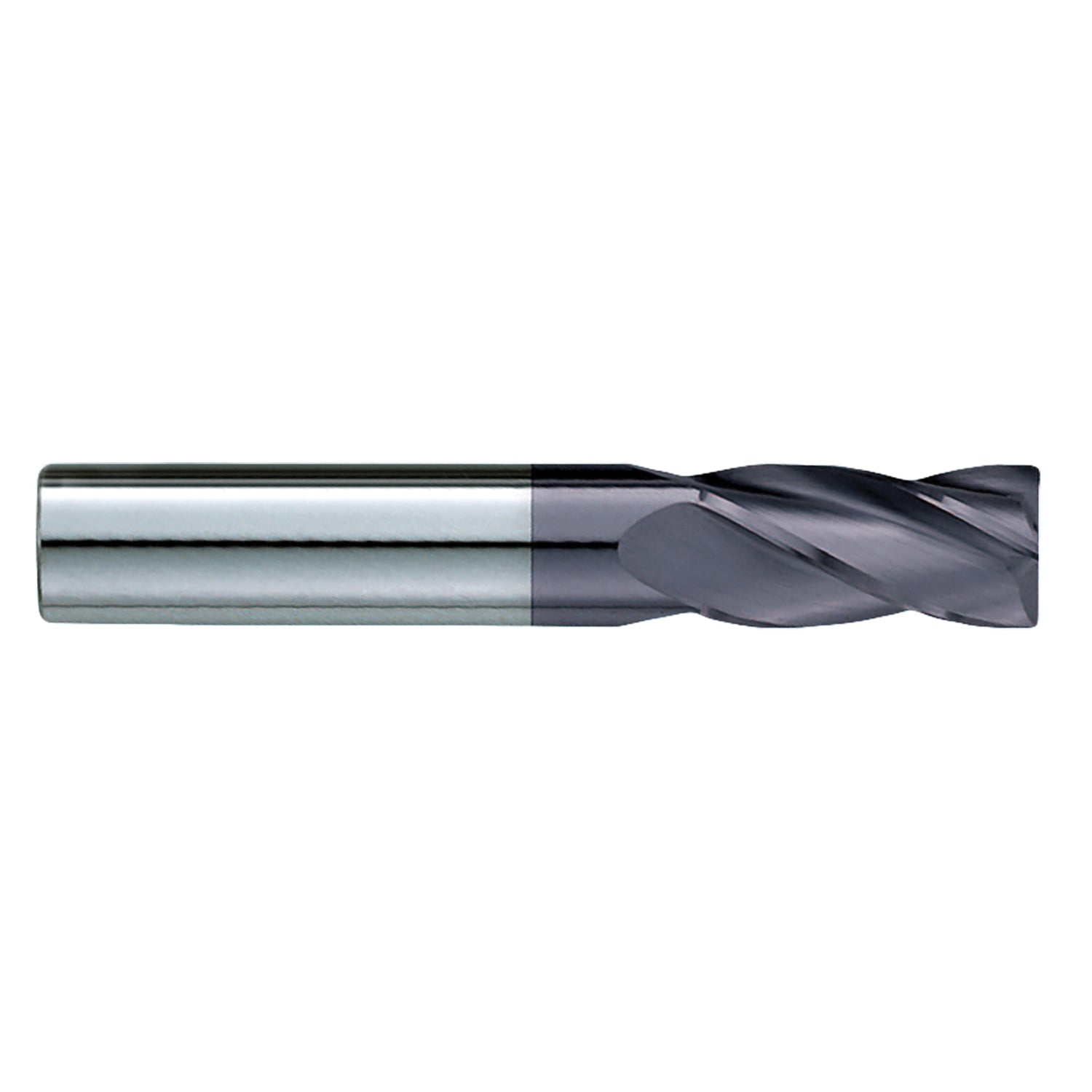

GARR GARRT-13157 GARR 13157 230MA Center Cutting Square End Standard Length End Mill 1/4 in Dia Cutter 1/4 in Dia Shank

Product Description

The GARR End Mill, model GARRT-13157, is a center cutting square end standard length end mill designed for metalworking tasks. This tool features a cutter diameter of one-fourth inch and an overall length of two and a half inches. The mill has four flutes and is suitable for dry or semi-dry machining applications.

• 1/4 inch cutter diameter
• 2-1/2 inch overall length
• Right-hand cutting with 30-degree helix angle

Product Highlights

Perfect for various milling operations, this end mill is made from solid submicron carbide and includes a TiALN coating to enhance durability and performance.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-13157

Technical Specifications

• Type: Center Cutting Square End Standard Length
• Cutter Diameter: 1/4 inch
• Length of Cut: 3/4 inch
• Number of Flutes: 4
• Shank Diameter: 1/4 inch
• Overall Length: 2-1/2 inches
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Finish: TiALN Coated
• Cutting Direction: Right Hand
• Flute Type: Spiral
• Shank Length: 1-3/4 inches
• Shank Type: Plain/Round
• Series: 230MA
