GARR GARRT-13137 230MA Center Cutting Square End Standard Length End Mill

Product Description

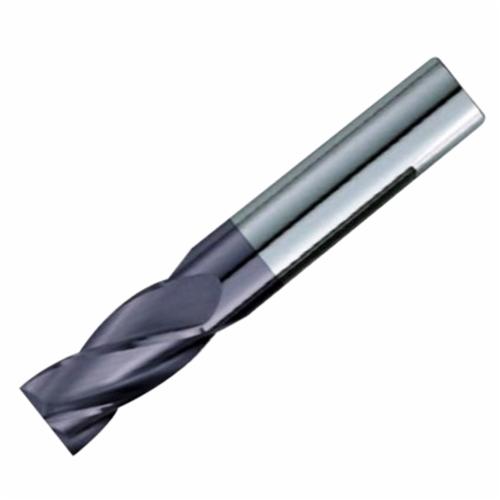

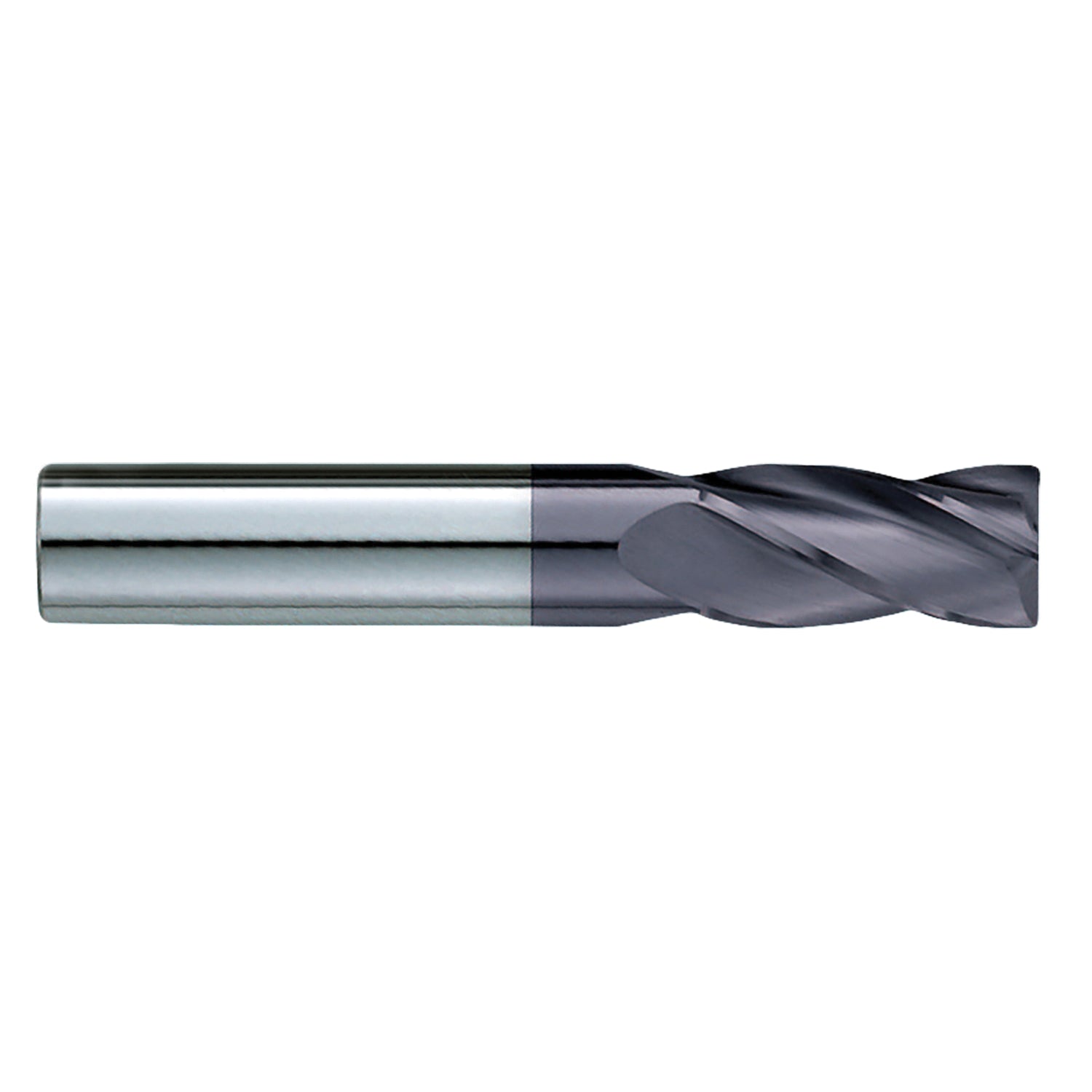

The GARR End Mill, model GARRT-13137, is a center cutting square end mill designed for precision cutting in various applications. This end mill features a diameter of seven thirty-seconds of an inch and a total length of two and a half inches. It is ideal for dry or semi-dry machining tasks, providing efficiency and durability.

• Center cutting design for versatility
• Made from solid submicron carbide
• TiALN coating for extended tool life

Product Highlights

This end mill is suitable for high-speed machining with a right-hand cutting direction and a thirty-degree helix angle.

Product Information

Standard Information

• Brand: GARR
• Type: Center Cutting Square End Standard Length

Technical Specifications

• Cutter Diameter: 7/32 in
• Length of Cut: 5/8 in
• Overall Length: 2-1/2 in
• Shank Diameter: 1/4 in
• Shank Length: 1-7/8 in
• Number of Flutes: 4
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Helix Angle: 30 deg
• Material: Solid Submicron Carbide
• Finish: TiALN Coated
