GARR GARRT-13117 230MA Center Cutting Square End Standard Length End Mill

Product Description

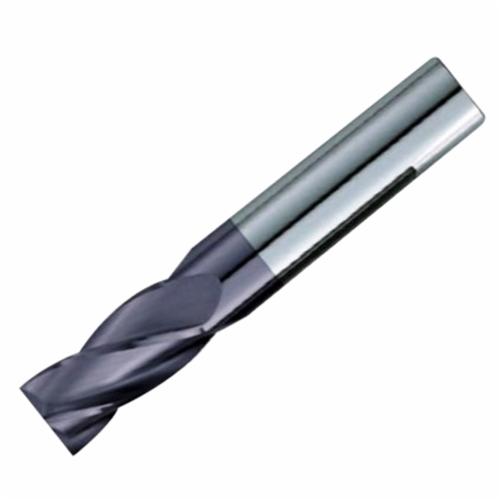

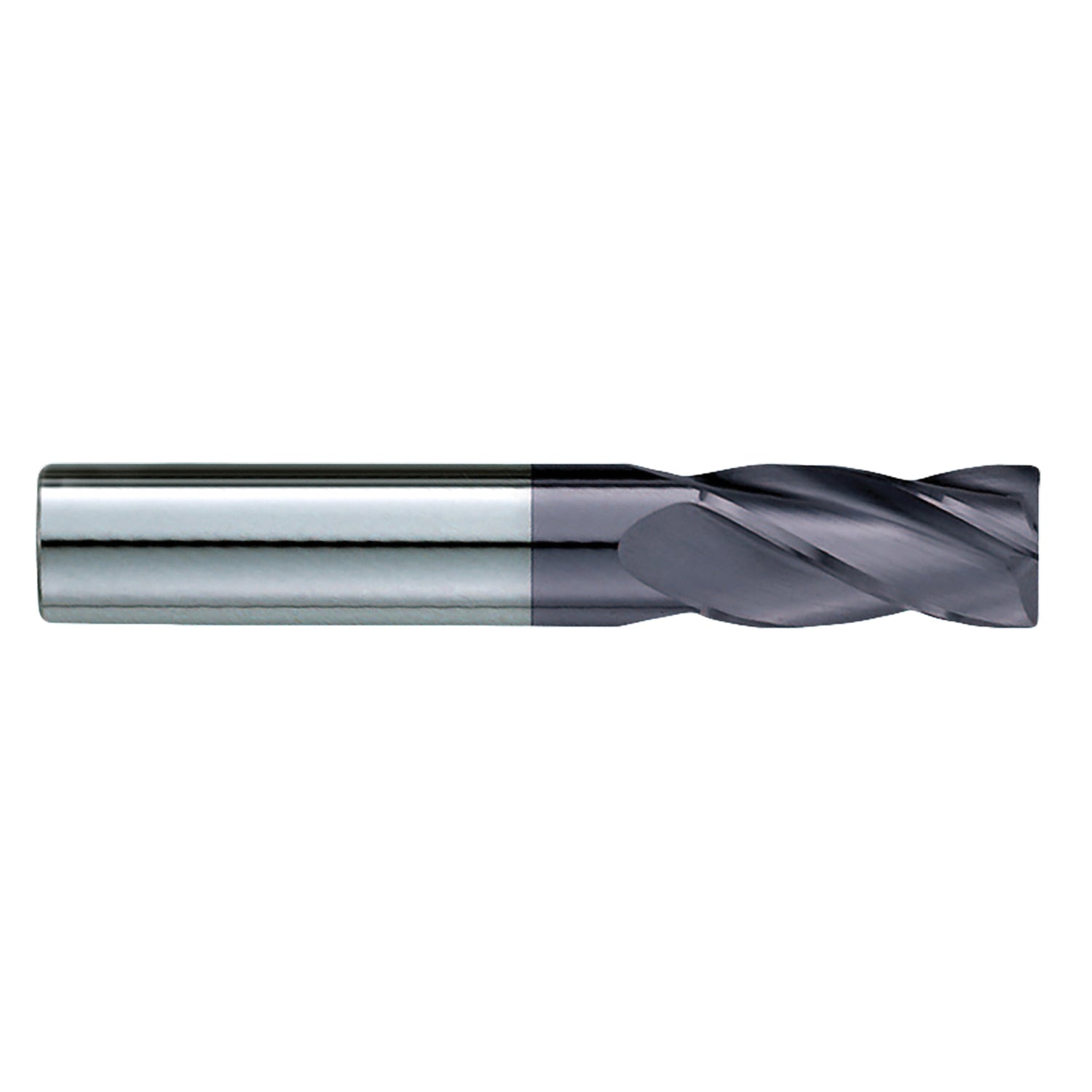

The GARR GARRT-13117 is a center cutting square end standard length end mill. This tool is optimized for precision milling tasks across various materials. It features a cutter diameter of three sixteenths of an inch and an overall length of two inches.

• 4 flutes for effective chip removal
• Solid submicron carbide material for durability
• TiALN coating enhances performance

Product Highlights

This end mill is effective for dry or semi-dry machining. It delivers efficient cutting performance, especially in tough materials.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-13117

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Series: 230MA
• Shank Length: 1-3/8 inches
• Shank Type: Plain/Round
• Type: Center Cutting Square End Standard Length
• Cutter Diameter: 3/16 inches
• Length of Cut: 5/8 inches
• Number of Flutes: 4
• Shank Diameter: 3/16 inches
• Overall Length: 2 inches
• Finish: TiALN Coated
