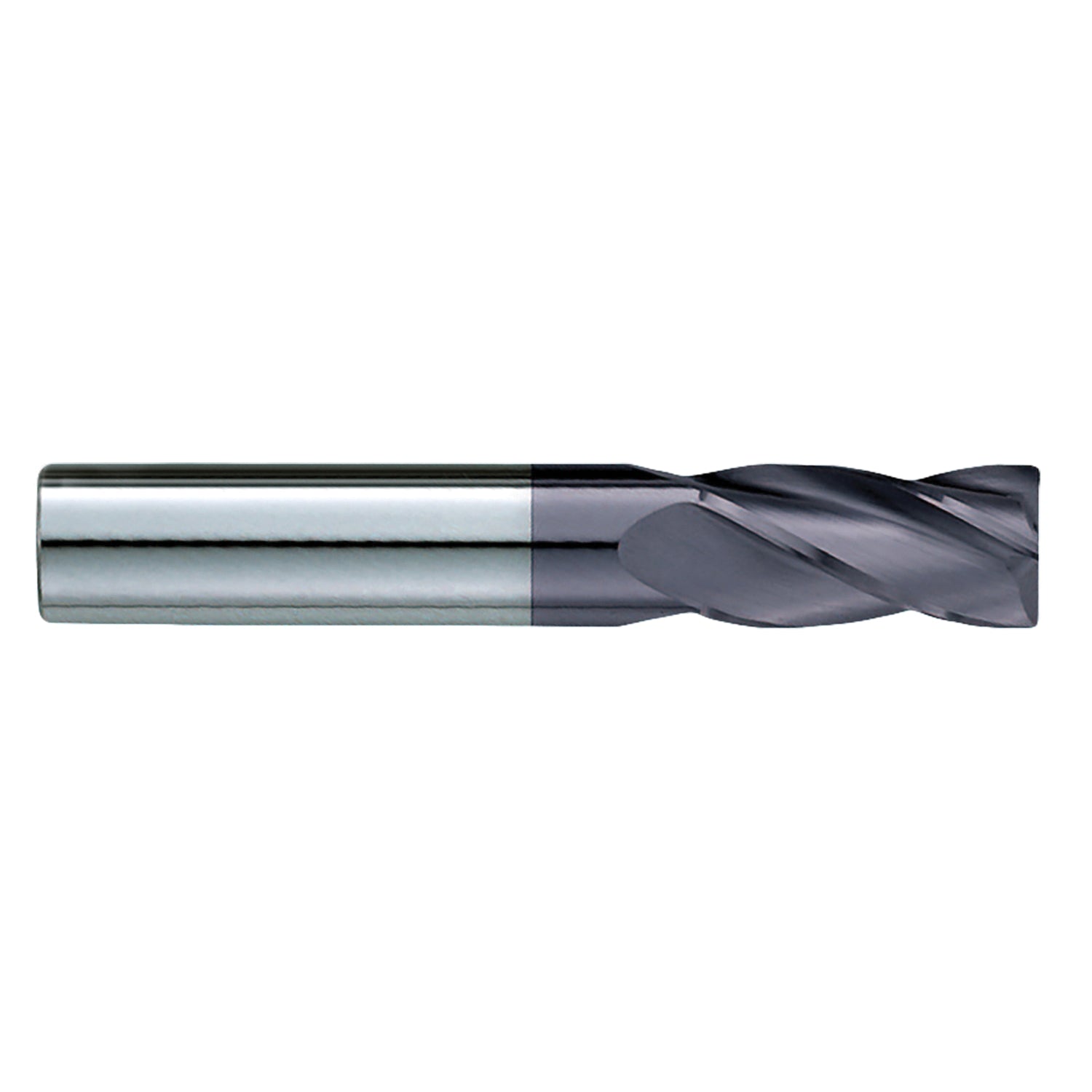

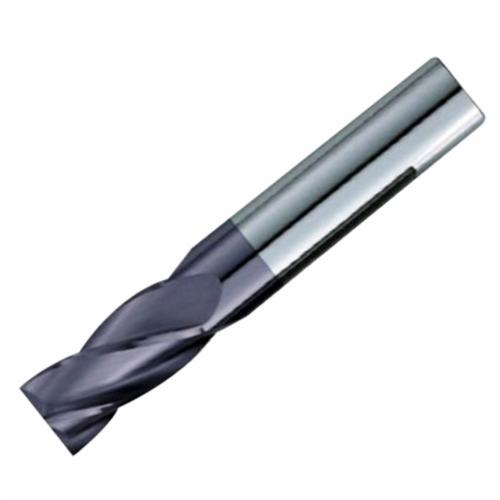

GARR GARRT-13097 230MA Center Cutting Square End Standard Length End Mill

Product Description

The GARR End Mill, MPN GARRT-13097, is a center cutting square end standard length tool designed for metalworking. This end mill features a diameter of five thirty-seconds of an inch and an overall length of two inches. It includes four spiral flutes and is suited for right-hand cutting tasks.

• Center cutting design allows for precision machining.
• Constructed with solid submicron carbide for durability.
• TiALN coating enhances performance in various machining conditions.

Product Highlights

The GARRT-13097 end mill is ideal for dry and semi-dry machining applications.

Product Information

Standard Information

• Brand: GARR
• Manufacturing Part Number: 13097

Technical Specifications

• Cutter Diameter: 5/32 in
• Overall Length: 2 in
• Length of Cut: 9/16 in
• Shank Diameter: 3/16 in
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Flute Type: Spiral
• Shank Type: Plain/Round
• Helix Angle: 30 deg
• Shank Length: 1-7/16 in
• Material: Solid Submicron Carbide
• Series: 230MA
• Finish: TiALN Coated
