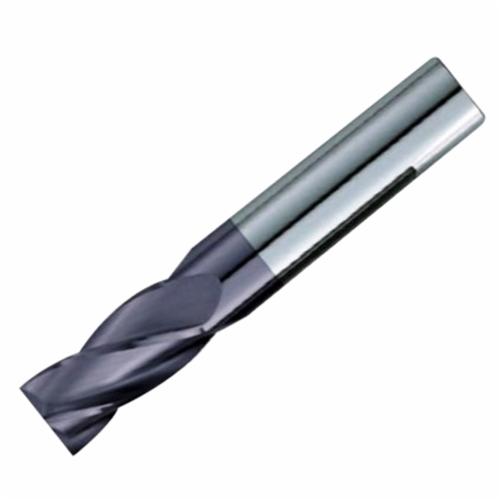

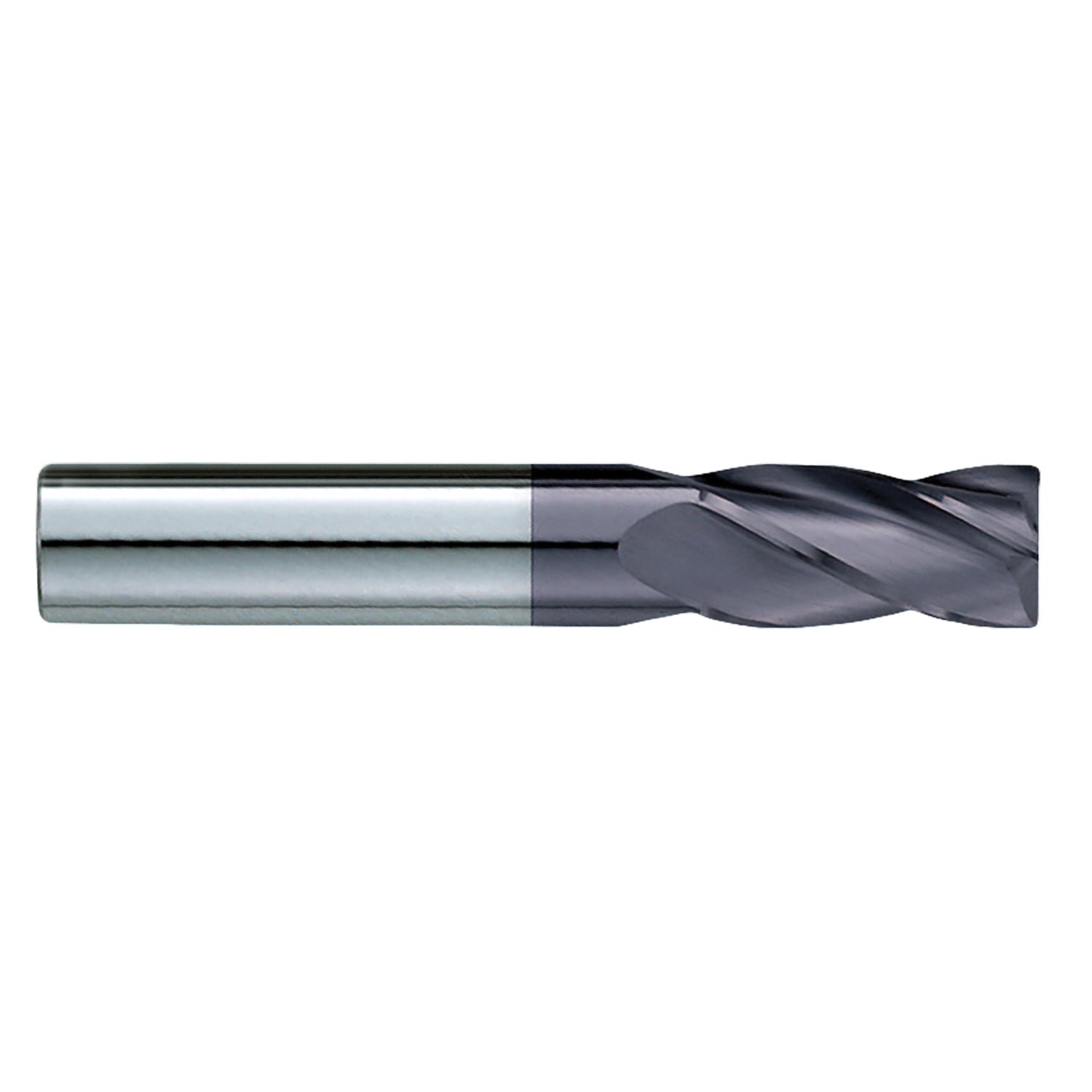

GARR GARRT-13077 Center Cutting Square End Standard Length End Mill 1/8 in Dia Cutter 230MA

Product Description

The GARR End Mill GARRT-13077 is designed for effective cutting in milling applications. With a diameter of one-eighth inch and an overall length of one and a half inches, this end mill provides precision in machining. Built with four spiral flutes, it excels in dry or semi-dry machining environments.

• Center Cutting Square End Standard Length
• High-speed cutting with TiALN coating
• Compatible with diverse materials

Product Highlights

This robust end mill features a right-hand cutting direction and a helix angle of thirty degrees. Crafted from solid submicron carbide, it ensures durability and performance.

Product Information

Standard Information

• Type: Center Cutting Square End Standard Length
• Brand: GARR

Technical Specifications

• Cutter Diameter: 1/8 in
• Overall Length: 1-1/2 in
• Length of Cut: 1/2 in
• Shank Diameter: 1/8 in
• Shank Length: 1 in
• Number of Flutes: 4
• Material: Solid Submicron Carbide
• Finish: TiALN Coated
• Helix Angle: 30 deg
• Cutting Direction: Right Hand
• Flute Type: Spiral
