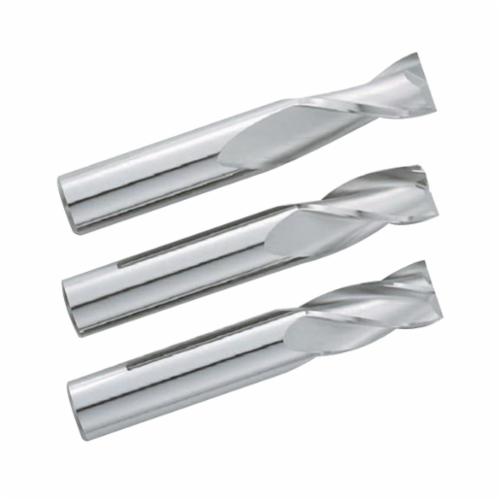

GARR GARRT-13070 GARR 13070 230M Center Cutting Single End Square End Standard Length End Mill 230M

Product Description

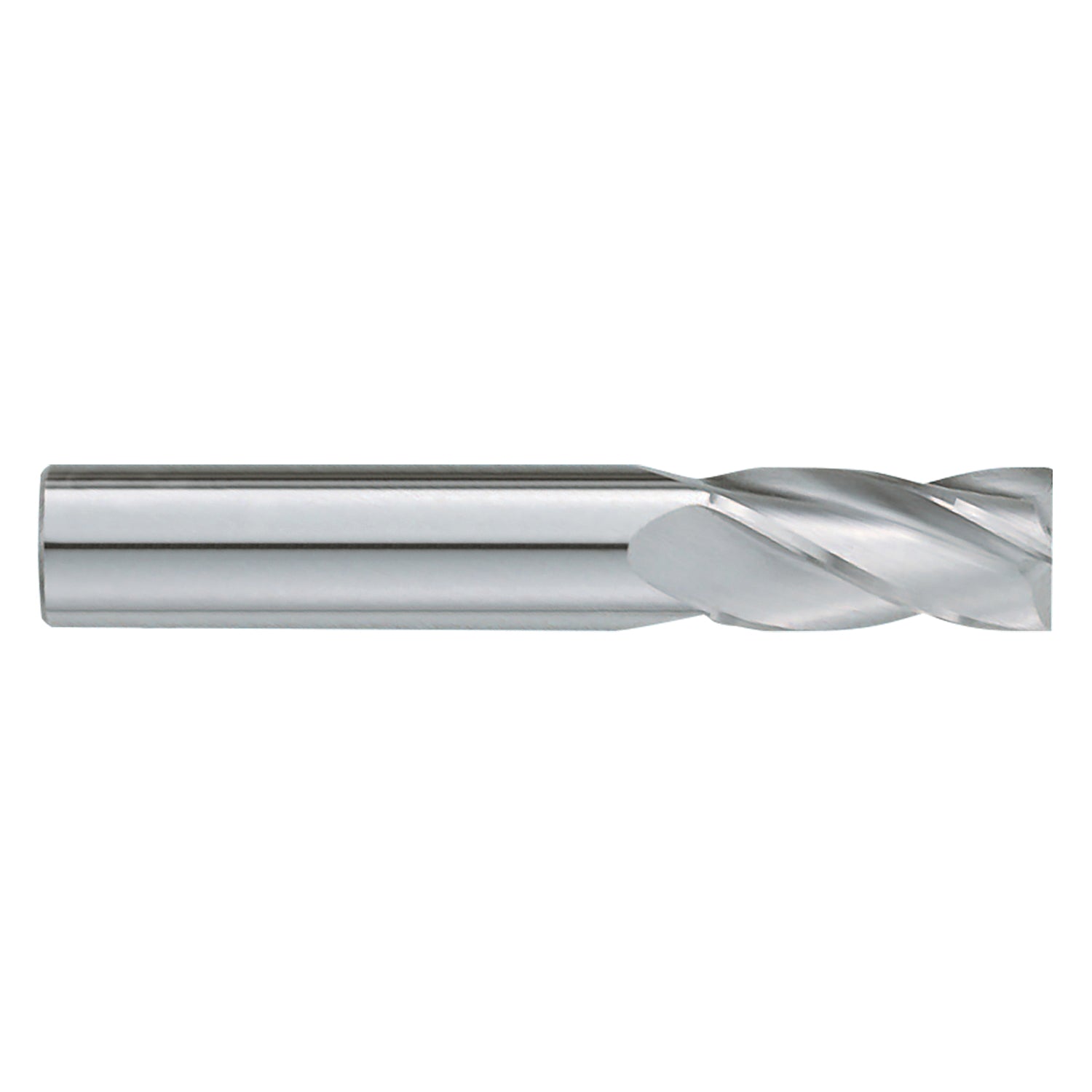

The GARR End Mill, model GARRT-13070, is a versatile tool designed for milling operations. This center cutting single end square end mill features a diameter of one eighth inch and an overall length of one and one half inches. The cutter has a length of cut measuring one half inch and is fitted with four spiral flutes, enhancing its cutting capability.

• Center cutting design for effective milling
• Constructed from solid submicron carbide
• Features four spiraled flutes for smooth operation

Product Highlights

This end mill is suitable for general purpose milling applications across various materials.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-13070

Technical Specifications

• Cutter Diameter: 1/8 inch
• Overall Length: 1-1/2 inches
• Length of Cut: 1/2 inch
• Number of Flutes: 4
• Shank Diameter: 1/8 inch
• Shank Length: 1 inch
• Helix Angle: 30 degrees
• Material: Solid submicron carbide
• Finish: Uncoated
• Flute Type: Spiral
• Cutting Direction: Right Hand
• Type: Center Cutting Single End Square End Standard Length
