GARR GARRT-13057 230MA Center Cutting Square End Standard Length End Mill

Product Description

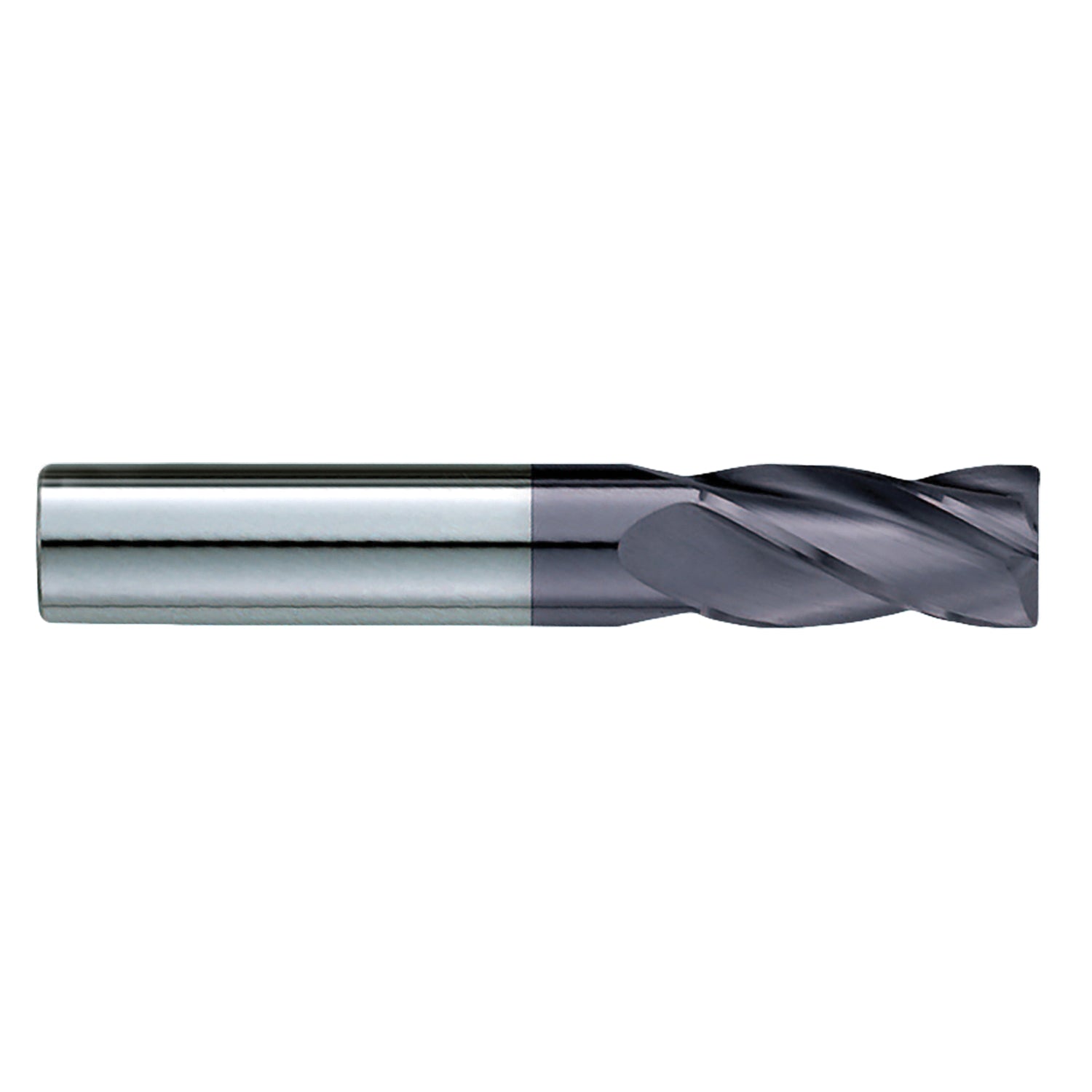

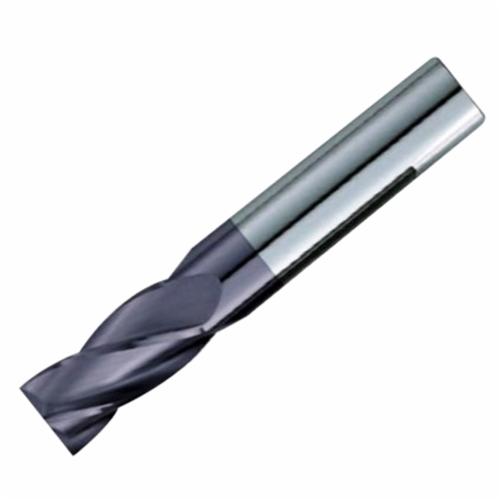

GARR GARRT-13057 is a center cutting square end mill. It is part of the 230MA series. This end mill has a cutter diameter of three thirty-seconds of an inch. The overall length of this tool is one and one-half inches with a cut length of three-eighths of an inch. It features four spiral flutes and a right-hand cutting direction.

• Cutting direction is right hand.
• Made from solid submicron carbide.
• TiALN coated for extended wear resistance.

Product Highlights

This end mill is suitable for dry or semi-dry machining. It offers a high level of versatility for various milling tasks.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-13057

Technical Specifications

• Cutter Diameter: 3/32 in
• Overall Length: 1-1/2 in
• Length of Cut: 3/8 in
• Flute Type: Spiral
• Number of Flutes: 4
• Shank Diameter: 1/8 in
• Shank Length: 1-1/8 in
• Material: Solid Submicron Carbide
• Series: 230MA
• Helix Angle: 30 deg
• Finish: TiALN Coated
