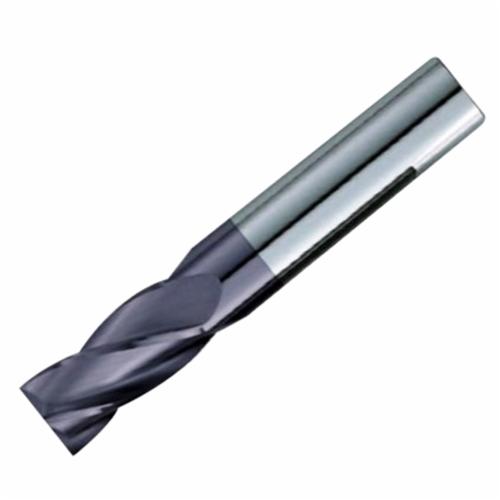

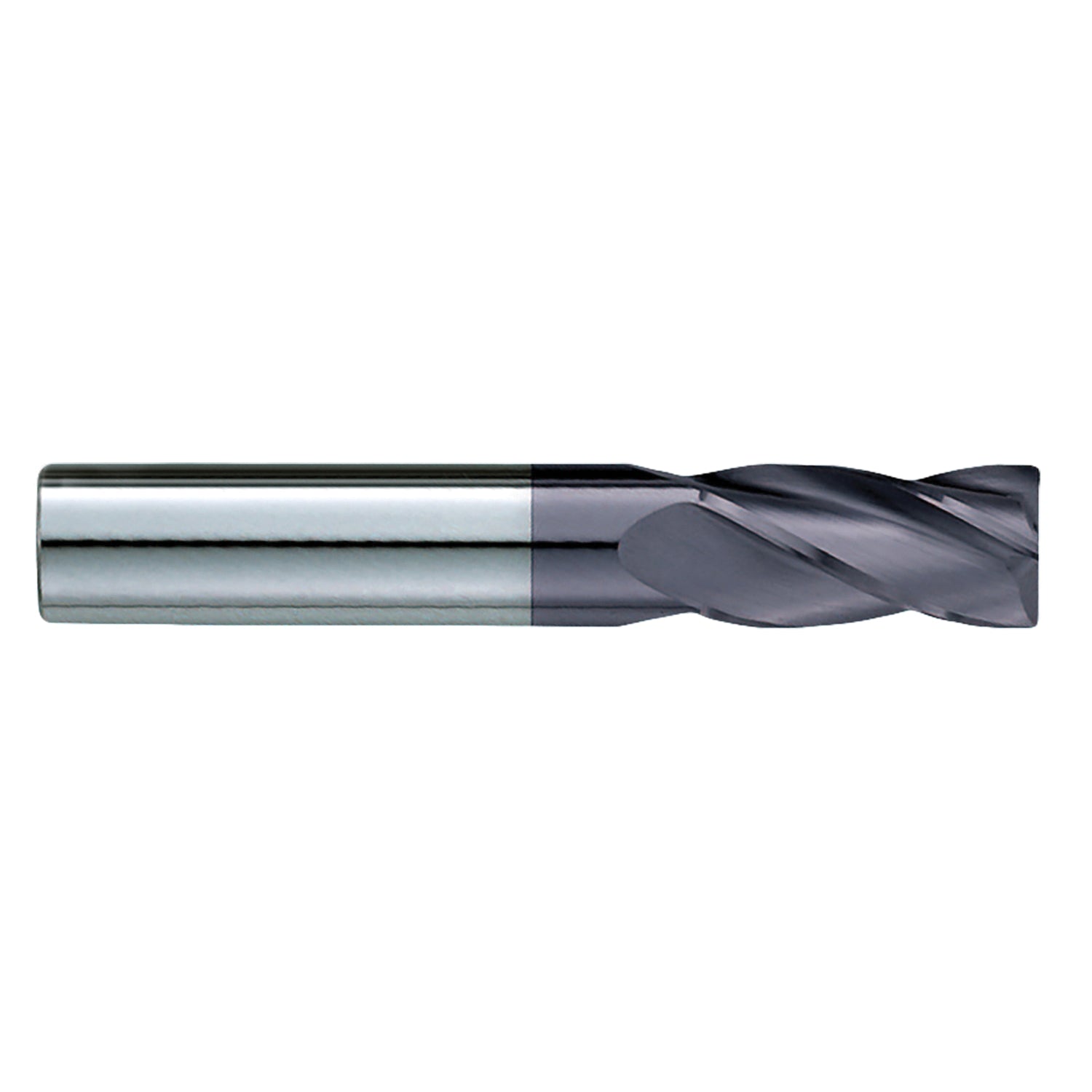

GARR GARRT-13037 GARR 13037 230MA Center Cutting Square End Standard Length End Mill

Product Description

The GARR GARRT-13037 End Mill is designed for precise cutting performance. Known for its center cutting square end, it has a diameter of one-sixteenth inch and an overall length of one and a half inches. This standard length end mill features four flutes which facilitate efficient cutting in various materials.

• 1/16 inch diameter cutter
• 1/4 inch length of cut
• Right hand cutting direction with a 30 degree helix angle

Product Highlights

This end mill is ideal for applications involving dry or semi-dry machining, ensuring smooth results and excellent versatility.

Product Information

Standard Information

• Brand: GARR
• Manufacturer Part Number: 13037

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Series: 230MA
• Shank Length: 1-1/4 inches
• Shank Type: Plain/Round
• Type: Center Cutting Square End Standard Length
• Cutter Diameter: 1/16 inch
• Length of Cut: 1/4 inch
• Number of Flutes: 4
• Shank Diameter: 1/8 inch
• Overall Length: 1-1/2 inches
• Finish: TiALN Coated
