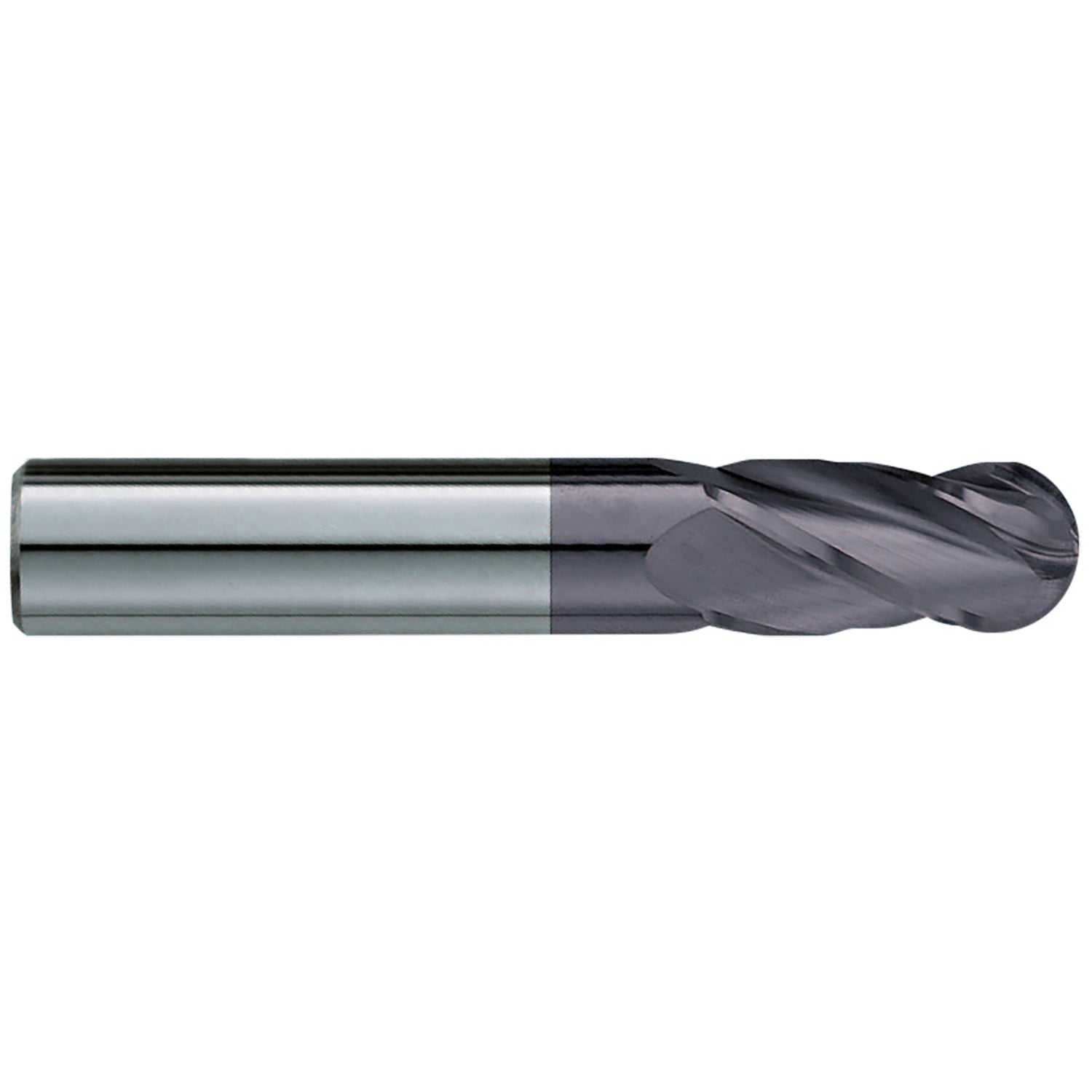

GARR GARRT-04047 190MA Ball End Center Cutting Single End Stub Length End Mill

Product Description

The GARR 04047 is a Ball End Center Cutting Single End Stub Length End Mill designed for precision machining tasks. This end mill features a cutter diameter of three thirty-seconds of an inch, making it suitable for detailed work in metalworking. The overall length is one and a half inches, with a length of cut measuring three-sixteenths of an inch. It is constructed with four flutes and has a right-hand cutting direction, providing versatile capabilities for various milling operations.

• Suitable for dry or semi-dry machining
• TiALN coated for extended tool life
• Designed for rigidity and fast cutting speeds

Product Highlights

The end mill excels in applications requiring precision cuts, particularly within tight spaces.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-04047

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Series: 190MA
• Shank Length: 1-5/16 inches
• Shank Type: Plain/Round
• Type: Ball End Center Cutting Single End Stub Length
• Cutter Diameter: 3/32 inches
• Length of Cut: 3/16 inches
• Number of Flutes: 4
• Shank Diameter: 1/8 inches
• Overall Length: 1-1/2 inches
• Finish: TiALN Coated
