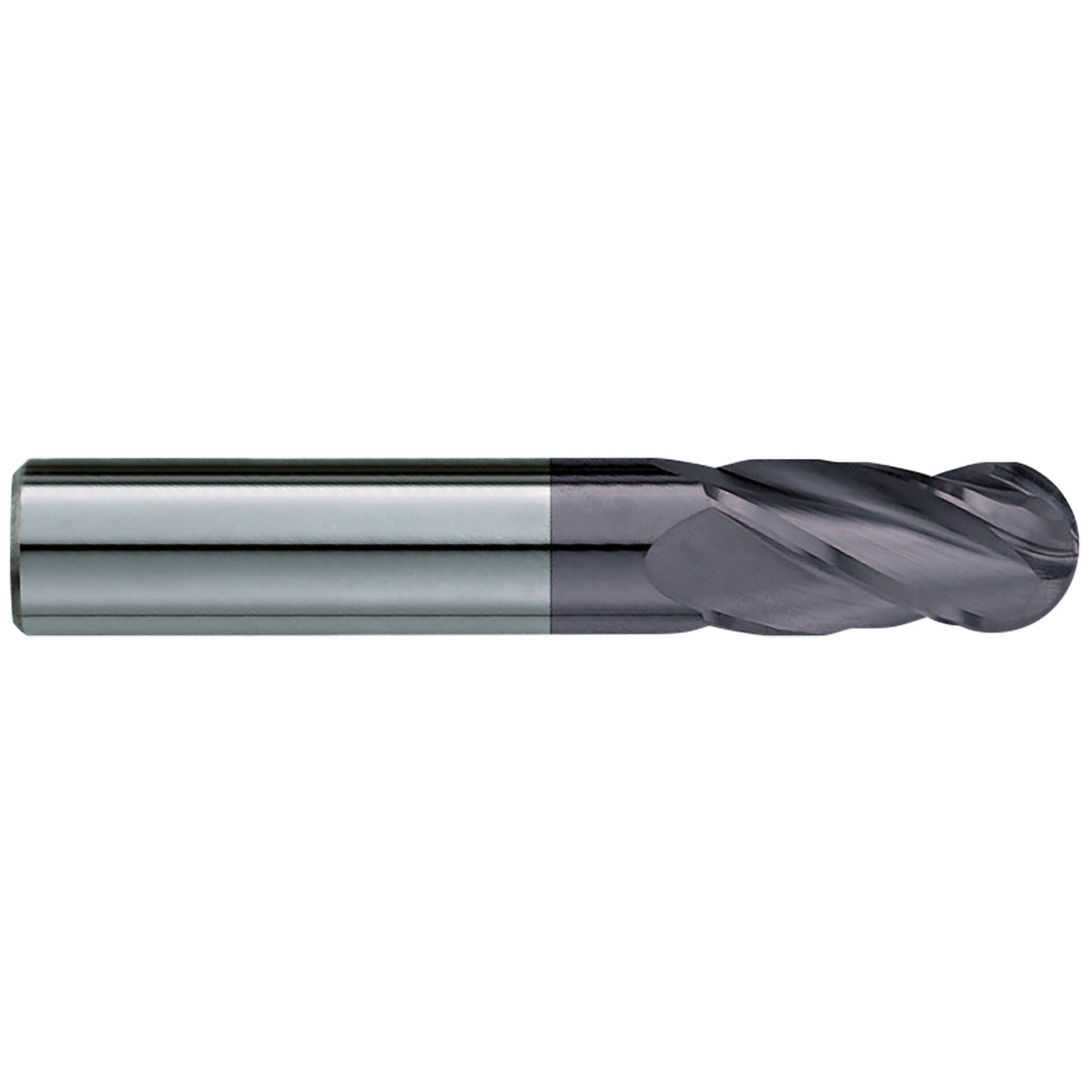

GARR GARRT-04027 Ball End Center Cutting Single End Stub Length 3/64 in

Product Description

The GARR Ball End Center Cutting Single End Stub Length End Mill, MPN GARRT-04027, is designed for milling operations requiring precision and stability. The tool features a cutter diameter of three sixty-fourths of an inch and an overall length of one and one-half inches. With a length of cut measuring three thirty-seconds of an inch, it is built for efficiency in machining tasks.

• Right hand cutting direction for optimal performance.
• Four spiral flutes for efficient chip removal.
• TiALN coating for enhanced durability.

Product Highlights

This end mill is suitable for dry or semi-dry machining applications.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-04027

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Series: 190MA
• Shank Length: 1-13/32 inches
• Shank Type: Plain/Round
• Type: Ball End Center Cutting Single End Stub Length
• Cutter Diameter: 3/64 inches
• Length of Cut: 3/32 inches
• Number of Flutes: 4
• Shank Diameter: 1/8 inches
• Overall Length: 1-1/2 inches
• Finish: TiALN Coated
