GARR GARRT-02117 GARR 02117 170MA Center Cutting Single End Square End Stub Length End Mill

Product Description

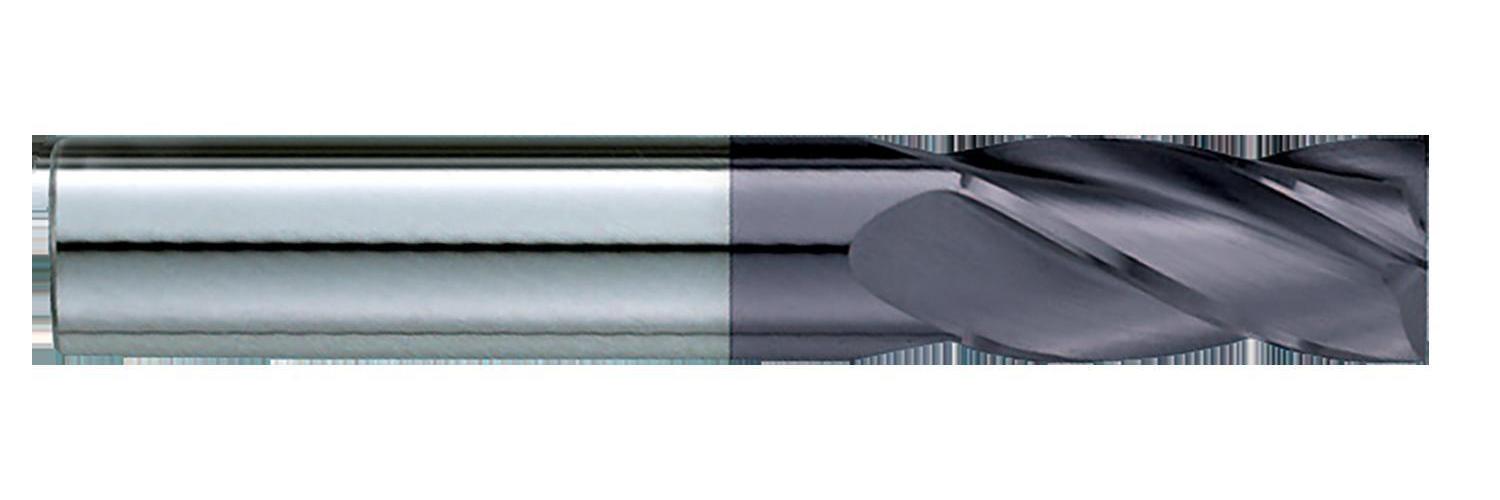

The GARR GARRT-02117 is a center cutting single end square end stub length end mill. It features a cutter diameter of three eighths of an inch and an overall length of two inches. This end mill is suitable for dry or semi-dry machining applications, designed for durability and efficiency.

• Center cutting single end design for versatility
• Four flutes for effective chip removal
• TiALN coating for enhanced tool life

Product Highlights

The GARRT-02117 is engineered for precise milling. Ideal for various machining tasks, this end mill performs well in demanding conditions.

Product Information

Standard Information

• Brand: GARR
• Manufacturing Part Number: 02117

Technical Specifications

• Cutter Diameter: 3/8 in
• Overall Length: 2 in
• Length of Cut: 5/8 in
• Number of Flutes: 4
• Shank Diameter: 3/8 in
• Shank Length: 1-3/8 in
• Material: Solid Submicron Carbide
• Flute Type: Spiral
• Helix Angle: 30 deg
• Cutting Direction: Right Hand
• Finish: TiALN Coated
• Series: 170MA
