GARR GARRT-02107 GARR 02107 170MA Center Cutting Single End Square End Stub Length End Mill

Product Description

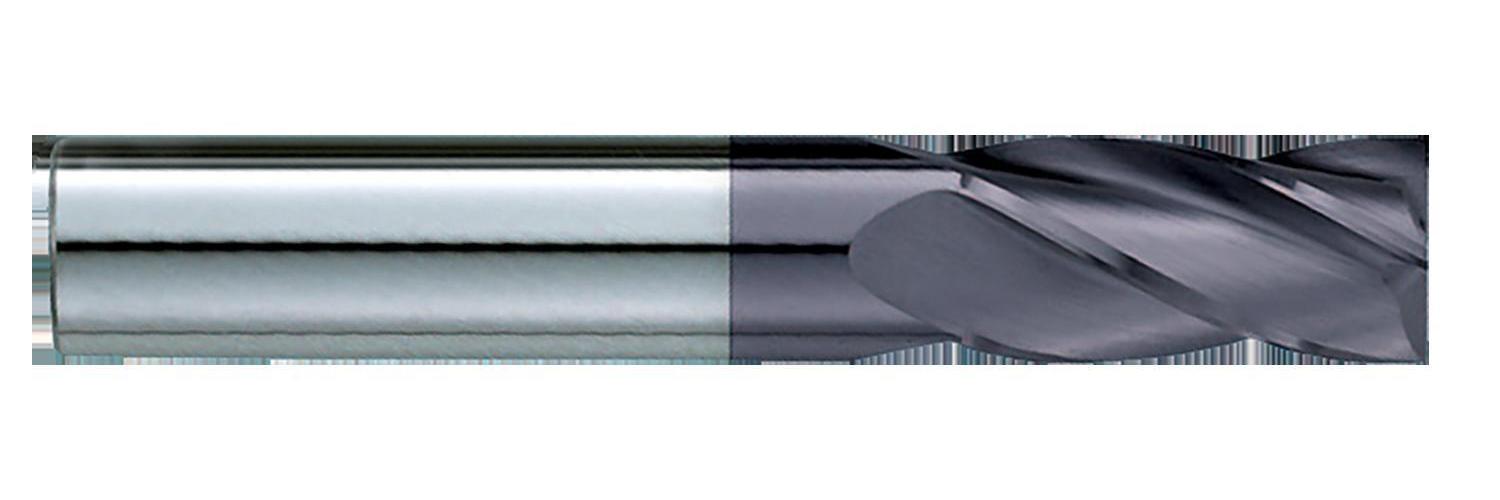

The GARR End Mill with MPN GARRT-02107 is designed for precision cutting with its center cutting single end square end stub length. This end mill features a five-sixteenth inch diameter cutter and an overall length of two inches. It offers a cutting length of one-half inch, four flutes, a five-sixteenth inch shank diameter, and is TiALN coated for enhanced performance.

• High rigidity due to shorter flute length
• Versatile for various machining applications
• Up to 40% faster than uncoated options

Product Highlights

Ideal for dry or semi-dry machining, this end mill ensures quality cuts in various materials. Its solid submicron carbide construction provides durability.

Product Information

Standard Information

• Brand: GARR
• Manufacturing Part Number: 02107

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 deg
• Material: Solid Submicron Carbide
• Series: 170MA
• Shank Length: 1-1/2 in
• Shank Type: Plain/Round
• Type: Center Cutting Single End Square End Stub Length
• Cutter Diameter: 5/16 in
• Length of Cut: 1/2 in
• Number of Flutes: 4
• Shank Diameter: 5/16 in
• Overall Length: 2 in
• Finish: TiALN Coated
