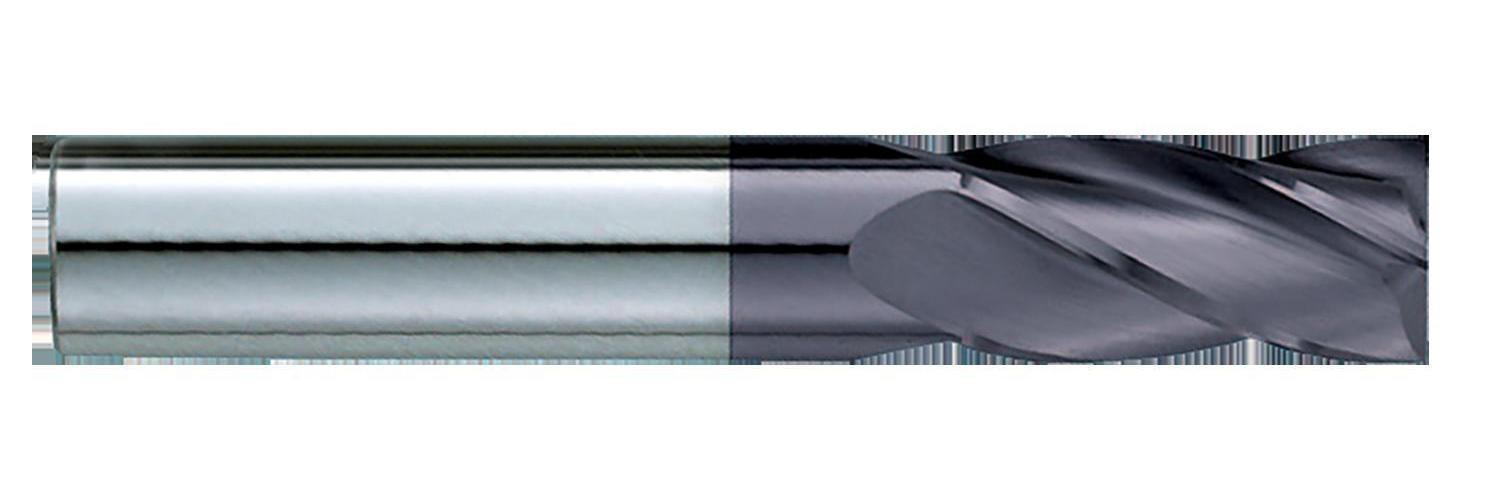

GARR GARRT-02097 Center Cutting Single End Square End Stub Length End Mill

Product Description

The GARR End Mill, model GARRT-02097, features a center cutting design with a single end and square end stub length. It has a cutting diameter of one quarter inch and an overall length of two inches. This end mill is designed with four flutes and a cutting length of one half inch.

• Made from solid submicron carbide
• TiALN coated for enhanced performance
• Ideal for dry or semi-dry machining applications

Product Highlights

Designed for precision cutting, this end mill provides excellent rigidity due to its shorter flute length. It is highly versatile for various machining tasks and operates up to forty percent faster compared to uncoated alternatives.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-02097

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 degrees
• Material: Solid Submicron Carbide
• Series: 170MA
• Shank Length: 1-1/2 inches
• Shank Type: Plain/Round
• Type: Center Cutting Single End Square End Stub Length
• Cutter Diameter: 1/4 inch
• Length of Cut: 1/2 inch
• Number of Flutes: 4
• Shank Diameter: 1/4 inch
• Overall Length: 2 inches
• Finish: TiALN Coated
