GARR GARRT-02077 Center Cutting Single End Square End Stub Length End Mill

Product Description

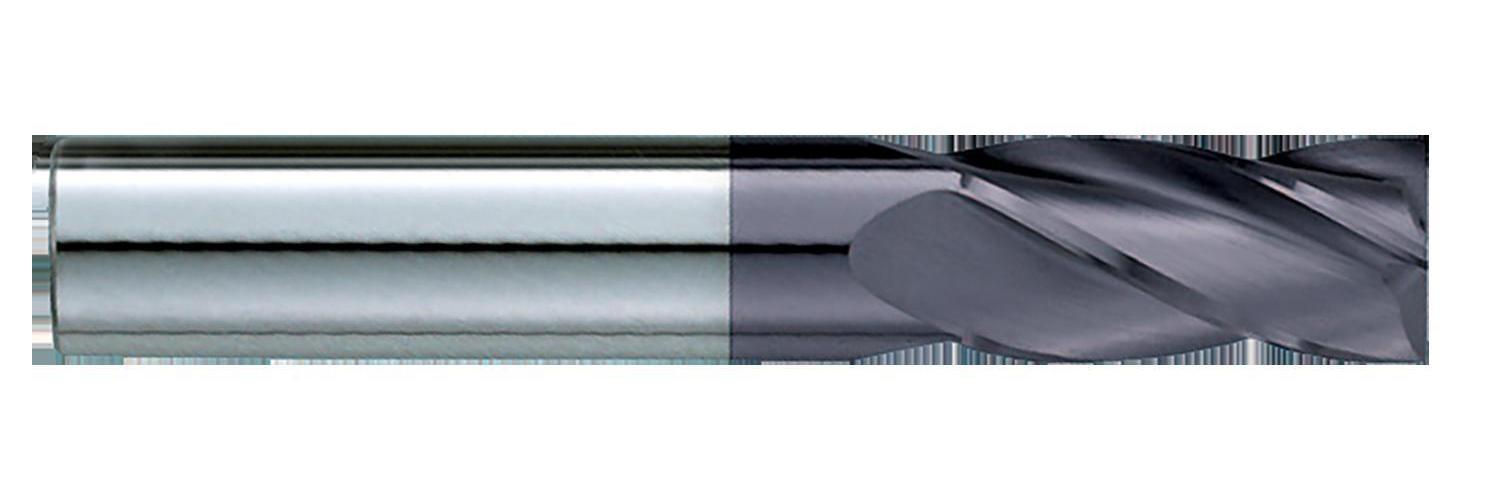

The GARR End Mill GARRT-02077 is designed for precise machining applications. This center cutting single end square end stub length end mill features a cutter diameter of three sixteenths inches and an overall length of two inches. It is engineered with four flutes and a length of cut of three eighths inches, suitable for various cutting tasks.

• Made from solid submicron carbide for durability.
• TiALN coating enhances performance and tool life.
• Right-hand cutting with a helix angle of thirty degrees supports efficient chip removal.

Product Highlights

This end mill is ideal for dry or semi-dry machining processes. It supports versatility in milling applications with a design that offers rigidity through its shorter flute length.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-02077

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 deg
• Material: Solid Submicron Carbide
• Series: 170MA
• Shank Length: 1-5/8 in
• Shank Type: Plain/Round
• Type: Center Cutting Single End Square End Stub Length
• Cutter Diameter: 3/16 in
• Length of Cut: 3/8 in
• Number of Flutes: 4
• Shank Diameter: 3/16 in
• Overall Length: 2 in
• Finish: TiALN Coated
